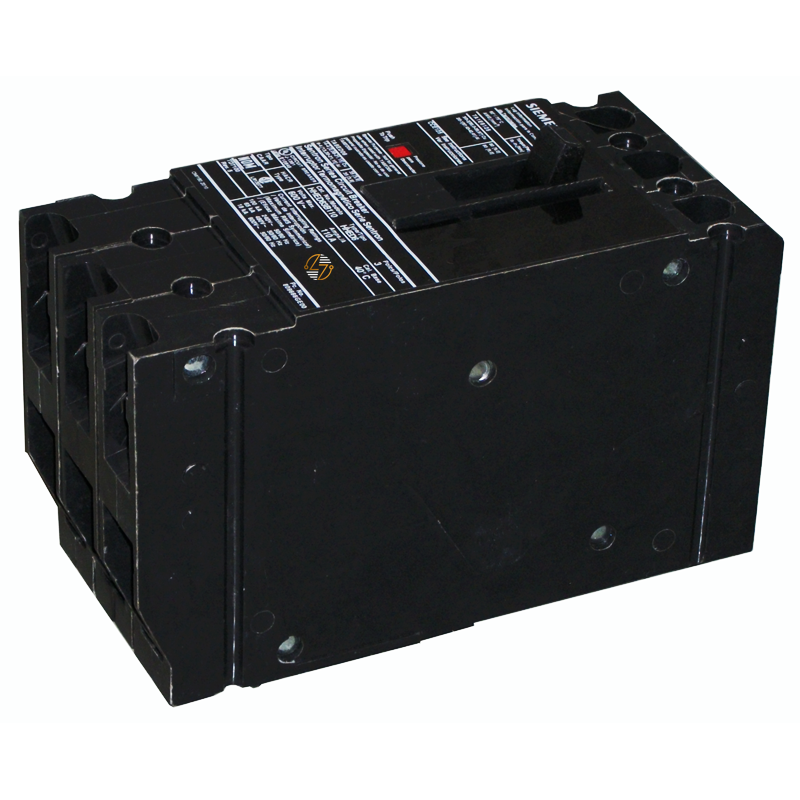

HHED63B015 - 15Amp Circuit Breaker

HHED63B015 - 15Amp Circuit Breaker

Finding the right replacement for your circuit breaker often comes down to the details: part number, dimensions, mounting style, amperage, poles, and interrupting rating. The HHED63B015 is a 15 Amp, 3-pole HHED6 molded case circuit breaker with a Sentron-style design and bolt-on mounting. For maintenance teams, electricians, and facility professionals working with compatible equipment, these specifications make it easier to compare the HHED63B015 directly with the breaker being replaced. Its molded case construction is built to last when the breaker is properly matched, installed, and used within its specified ratings.

Key Features and Benefits

• 15 Amp, 3-pole breaker – Provides the amperage and three-pole configuration required by compatible electrical equipment.
• HHED6 type – Designed for applications calling for this specific molded case breaker type.
• Bolt-on design – Fits equipment requiring a bolt-on breaker rather than a plug-in configuration.
• HACR-rated – Rated at 40°C and suitable for compatible heating, air-conditioning, and refrigeration applications where this breaker specification is required.
• Reverse-feed capable – Suitable for reverse-feed use when the equipment and installation allow it.
• Load-side terminals included – Comes configured with load-side terminals.


Technical Specifications

• Part Number: HHED63B015

• Type: HHED6

• Breaker Style: Sentron-style molded case circuit breaker

• Amperage: 15 Amps

• Poles: 3

• Mounting: Bolt-On

• A.I.C. Rating at 600VAC: 18kA

• A.I.C. Rating at 480VAC: 65kA

• A.I.C. Rating at 240VAC: 100kA

• Temperature Rating: 40°C

• HACR Rated: Yes

• Reverse Feed: Suitable

• Terminals: Load-side terminals included

• Height: 6.63 in.

• Width: 3.00 in.

• Depth: 3.92 in.

• Overall Dimensions: 3.00"W x 6.63"L x 3.92"D

• Approximate Shipping Weight: 6.00 lbs.


Material Compliance and Certifications

The available specifications identify the HHED63B015 as HACR-rated with a 40°C rating. No other material-compliance certifications have been provided for this specific part number.

Where It Works Best

The HHED63B015 makes the most sense in existing electrical equipment that calls for an HHED6, 15 Amp, 3-pole molded case circuit breaker with matching dimensions, mounting, and electrical ratings. Typical applications may include compatible commercial and industrial electrical systems, facility maintenance work, and HVAC-related equipment where an HACR-rated breaker of this specification is required.
