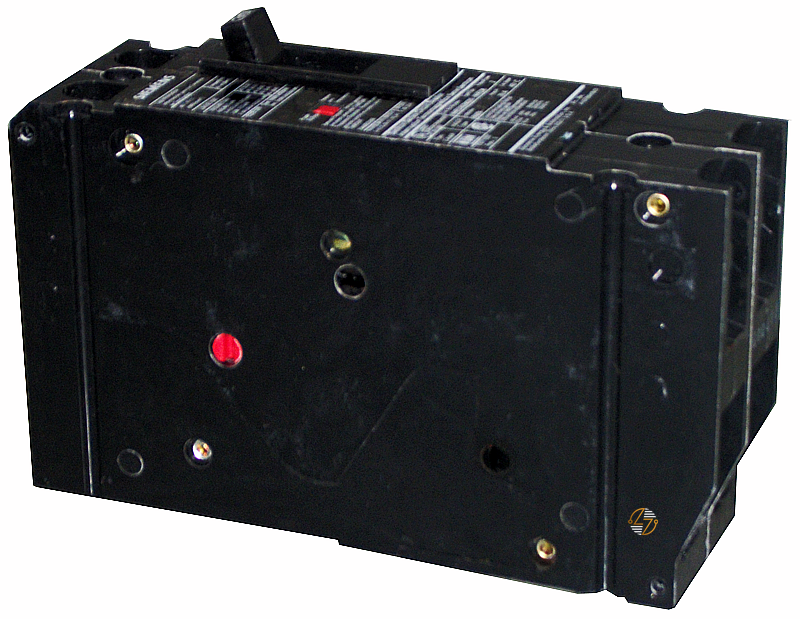

HHED62B125L - 125Amp Circuit Breaker

HHED62B125L - 125Amp Circuit Breaker

When you’re replacing a circuit breaker in existing equipment, the details matter. The HHED62B125L is a 125 Amp, 2-pole HHED6 molded case circuit breaker with the dimensions, ratings, and terminal configuration needed for compatible electrical systems. For maintenance work and replacement projects, the HHED62B125L makes sense when the existing equipment calls for this specific breaker type and matching electrical characteristics. Its molded case construction is built to last when the breaker is properly installed and used within its stated ratings.

Key Features and Benefits

• 125 Amp, 2-pole design: Matches applications requiring this specific amperage and pole configuration.
• HHED6 breaker type: Designed for use with equipment compatible with the HHED6 form and configuration.
• Terminals included on both sides: The breaker includes line- and load-side terminals, an important consideration when matching an existing installation.
• HACR-rated: Appropriate for compatible heating, air-conditioning, and refrigeration applications.
• Suitable for reverse feed: Can be used in reverse-feed configurations where the equipment and installation permit it.


Technical Specifications

• Part Number: HHED62B125L

• Type: HHED6

• Breaker Style: Sentron-style molded case circuit breaker

• Amperage: 125 Amps

• Poles: 2

• A.I.C. @ 600VAC: 18kA

• A.I.C. @ 480VAC: 65kA

• A.I.C. @ 240VAC: 100kA

• Temperature Rating: 40°C

• HACR Rated: Yes

• Reverse Feed: Suitable

• Terminals: Line- and load-side terminals included

• Dimensions: 2.00"W x 6.63"L x 3.92"D

• Approx. Ship Weight: 4.00 lbs.


Material Compliance and Certifications

The available product specifications identify the HHED62B125L as HACR-rated with a 40°C rating. No other certification or material-compliance information has been provided for this part number.

Where It Works Best

The HHED62B125L is a good fit for maintenance and replacement work where an existing electrical system requires a 125 Amp, 2-pole HHED6 molded case circuit breaker with matching characteristics. That can include compatible commercial, industrial, facility, and HVAC electrical equipment.
