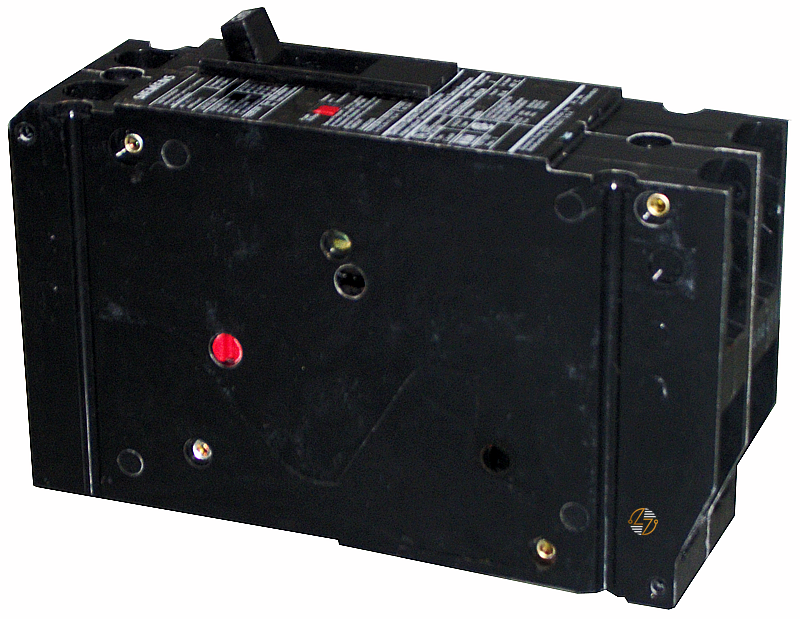

HHED62B125 - 125Amp Circuit Breaker

HHED62B125 - 125Amp Circuit Breaker

When you’re replacing a breaker in existing equipment, the details matter. The HHED62B125 is a 125 Amp, 2-pole HHED6 molded case circuit breaker with a Sentron-style design. It’s intended for applications where its physical configuration and electrical ratings match the existing system. The breaker is rated 18kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC, giving you clear specifications to check against the equipment you’re servicing.

Key Features and Benefits

• 125 Amp, 2-pole configuration for compatible electrical distribution applications.
• HHED6 molded case design suited to equipment requiring this particular breaker type.
• HACR-rated, making it suitable for applicable heating, air-conditioning, and refrigeration equipment.
• Rated at 40°C according to the available product specifications.
• Suitable for reverse feed where the equipment and installation allow it.
• Load-side terminals are included.
• Measures just 2.00 inches wide, an important consideration when matching an existing breaker installation.

Technical Specifications

• Part Number: HHED62B125

• Type: HHED6

• Breaker Style: Sentron-style molded case circuit breaker

• Amperage: 125 Amps

• Poles: 2

• A.I.C. @ 600VAC: 18kA

• A.I.C. @ 480VAC: 65kA

• A.I.C. @ 240VAC: 100kA

• Temperature Rating: 40°C

• HACR Rated: Yes

• Reverse Feed: Suitable

• Terminals: Load-side terminals included

• Dimensions: 2.00"W x 6.63"L x 3.92"D

• Width: 2.00 in.

• Height: 6.63 in.

• Depth: 3.92 in.

• Approx. Shipping Weight: 4.00 lbs.


Material Compliance and Certifications

The supplied specifications identify the HHED62B125 as HACR-rated and list a 40°C rating. No other material-compliance declarations or certifications were provided for this specific part number, so it’s better not to make assumptions about certifications that aren’t documented.

Where It Works Best

The HHED62B125 is best suited to maintenance and replacement work involving existing electrical equipment designed for a compatible HHED6 125 Amp, 2-pole molded case circuit breaker. This can include commercial, industrial, HVAC, and facility electrical systems where maintaining the original breaker configuration is important.
