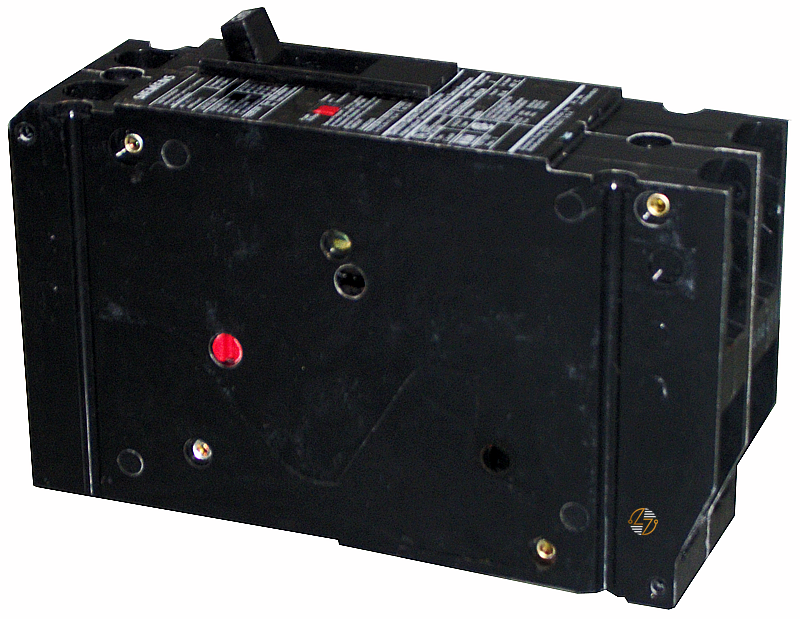

HHED62B110 - 110Amp Circuit Breaker

HHED62B110 - 110Amp Circuit Breaker

When your job involves keeping existing electrical equipment in service, matching the breaker to the application is what counts. The HHED62B110 is a 110 Amp, 2-pole HHED6 molded case circuit breaker with a Sentron-style configuration, intended for systems that call for this specific form, rating, and footprint. Its interrupting ratings are 18kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC, giving electricians and maintenance teams clear numbers to compare with the requirements of the existing equipment.

Key Features and Benefits

• 110 Amp, 2-pole configuration for compatible electrical distribution applications.
• HHED6 molded case design provides a defined form and footprint for replacement matching.
• Load-side terminals included for the specified connection arrangement.
• HACR-rated, making it suitable for applicable heating, air-conditioning, and refrigeration circuits.
• 40°C rating according to the available product specifications.
• Suitable for reverse feed where the equipment and application permit this configuration.
• Compact 2.00-inch width helps with physical compatibility checks in existing equipment.

Technical Specifications

• Part Number: HHED62B110

• Type: HHED6

• Breaker Style: Sentron-style molded case circuit breaker

• Amperage: 110 Amps

• Number of Poles: 2

• A.I.C. at 600VAC: 18kA

• A.I.C. at 480VAC: 65kA

• A.I.C. at 240VAC: 100kA

• Temperature Rating: 40°C

• HACR Rated: Yes

• Reverse Feed: Suitable

• Terminals: Load-side terminals included

• Width: 2.00 in.

• Height/Length: 6.63 in.

• Depth: 3.92 in.

• Overall Dimensions: 2.00"W x 6.63"L x 3.92"D

• Approximate Shipping Weight: 4.00 lbs.


Material Compliance and Certifications

The available specifications identify the HHED62B110 as HACR-rated and specify a 40°C operating rating. Additional material-compliance information or certifications have not been provided for this exact part number, so they should not be assumed.

Where It Works Best

The HHED62B110 circuit breaker is best suited to existing electrical systems that require a 110 Amp, 2-pole HHED6 molded case breaker with the same physical configuration and appropriate interrupting capacity. It's particularly relevant for maintenance and replacement projects where keeping the original equipment configuration intact is the priority.
