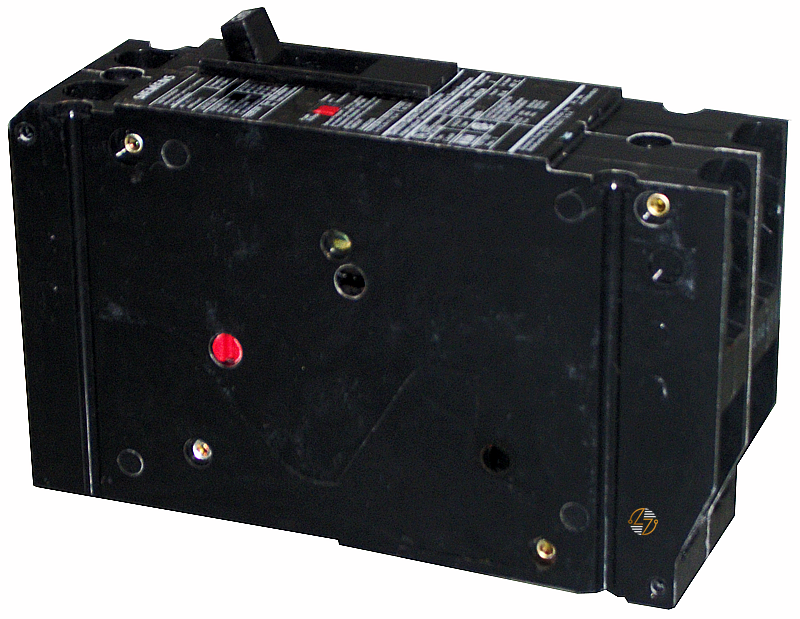

HHED62B100 - 100Amp Circuit Breaker

HHED62B100 - 100Amp Circuit Breaker

When you’re replacing a breaker in existing equipment, the details matter. The HHED62B100 is a 100 Amp, 2-pole HHED6 molded case circuit breaker made for applications that call for this specific Sentron-style configuration. In short, the HHED62B100 is intended for jobs where you need the right amperage, pole count, physical size, and interrupting rating—not unnecessary extras. Its molded case construction is built to last when the breaker is properly installed and operated within its specified ratings.

Key Features and Benefits

• 100 Amp, 2-pole configuration for equipment designed around these electrical requirements.
• HHED6 breaker type helps with accurate identification when matching an existing application.
• HACR-rated for applicable heating, air-conditioning, and refrigeration applications.
• Rated for 40°C operation according to the available specifications.
• Load-side terminals are included, an important detail when checking replacement requirements.
• Suitable for reverse feed when permitted by the equipment and installation.
• Sentron-style molded case construction suited to compatible electrical distribution equipment.
• At only 2.00 inches wide, its dimensions can be checked directly against the breaker being replaced and the available mounting space.

Technical Specifications

• Part Number: HHED62B100

• Type: HHED6

• Breaker Type: Molded Case Circuit Breaker

• Style: Sentron-style

• Amperage: 100 Amps

• Number of Poles: 2

• A.I.C. at 600VAC: 18kA

• A.I.C. at 480VAC: 65kA

• A.I.C. at 240VAC: 100kA

• Temperature Rating: 40°C

• HACR Rated: Yes

• Suitable for Reverse Feed: Yes

• Terminals: Load-side terminals included

• Height: 6.63 in.

• Width: 2.00 in.

• Depth: 3.92 in.

• Overall Dimensions: 2.00"W x 6.63"H x 3.92"D

• Approx. Shipping Weight: 4.00 lbs.


Material Compliance and Certifications

The available product information identifies the HHED62B100 as HACR-rated and specifies a 40°C rating. No additional material-compliance certifications have been provided in the supplied specifications.

Where It Works Best

The HHED62B100 makes the most sense when maintaining an electrical system that was designed around a compatible HHED6 molded case circuit breaker. This is particularly important with existing and legacy equipment, where changing breaker dimensions, pole configuration, amperage, or interrupting capacity may not be an option.
