HHED62B090L - 90Amp Circuit Breaker

HHED62B090L - 90Amp Circuit Breaker

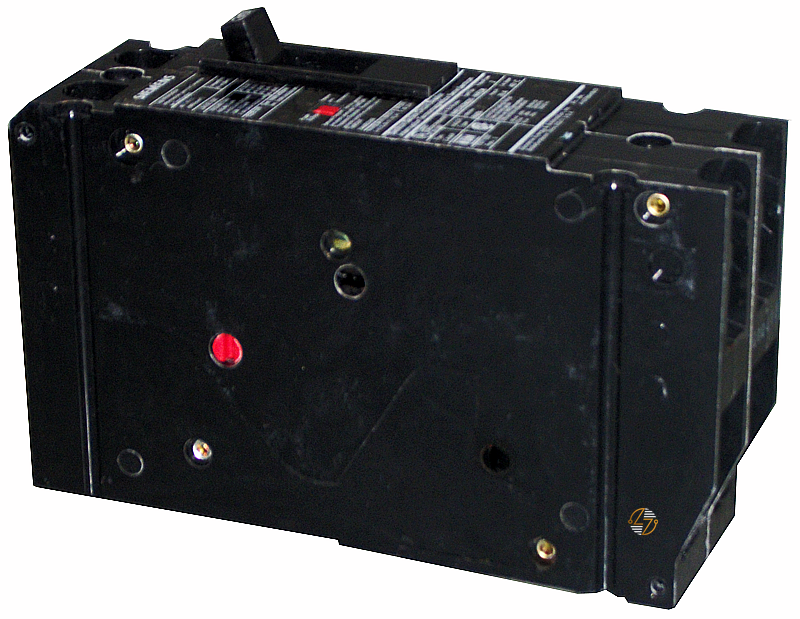

The HHED62B090L is a 90 Amp, 2-pole HHED6 molded case circuit breaker designed for your applications where matching the correct electrical ratings, physical dimensions, and connection configuration matters. This Sentron-style breaker has interrupting ratings of 18kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC, making those specifications easy to verify against the requirements of an existing electrical system. It is 40°C rated and HACR-rated and includes both line- and load-side terminals, an important distinction when checking a replacement breaker for compatibility.

Key Features and Benefits

• 90 Amp rating for applications requiring a 90A molded case circuit breaker
• 2-pole configuration for compatible electrical distribution systems
• HHED6 type helps technicians identify and match the required breaker family
• 40°C rated according to the supplied product specifications
• HACR-rated for applicable heating, air-conditioning, and refrigeration applications
• Line- and load-side terminals included, simplifying verification of the required terminal configuration
• Suitable for reverse feed where permitted by the equipment and application
• Sentron-style molded case construction for compatible installations
• Defined case dimensions help technicians confirm physical fit before installation

Technical Specifications

• Part Number: HHED62B090L

• Type: HHED6

• Product Type: Molded Case Circuit Breaker

• Style: Sentron-style

• Poles: 2

• Amperage: 90 Amps

• A.I.C. Rating at 600VAC: 18kA

• A.I.C. Rating at 480VAC: 65kA

• A.I.C. Rating at 240VAC: 100kA

• Temperature Rating: 40°C

• HACR Rated: Yes

• Reverse Feed Suitable: Yes

• Terminals: Line- and load-side terminals included

• Height: 6.63 in.

• Width: 2.00 in.

• Depth: 3.92 in.

• Dimensions: 2.00"W x 6.63"H x 3.92"D

• Approximate Shipping Weight: 4.00 lbs.


Material Compliance and Certifications

The supplied specifications identify the HHED62B090L as HACR-rated and specify a 40°C rating. No additional material-compliance information or certifications were provided for this specific part number. To keep product information accurate, certifications such as UL, CSA, RoHS, or REACH should not be assumed without supporting manufacturer documentation or markings on the breaker itself.

Where It Works Best

The HHED62B090L 90 Amp 2-pole circuit breaker is best suited to electrical maintenance and replacement applications requiring the HHED6 form factor and corresponding electrical characteristics. It can be particularly useful when servicing existing or legacy electrical distribution equipment, where matching the original breaker's type, pole count, amperage, interrupting capacity, terminal arrangement, and physical dimensions is essential.
