HHED62B090 - 90Amp Circuit Breaker

HHED62B090 - 90Amp Circuit Breaker

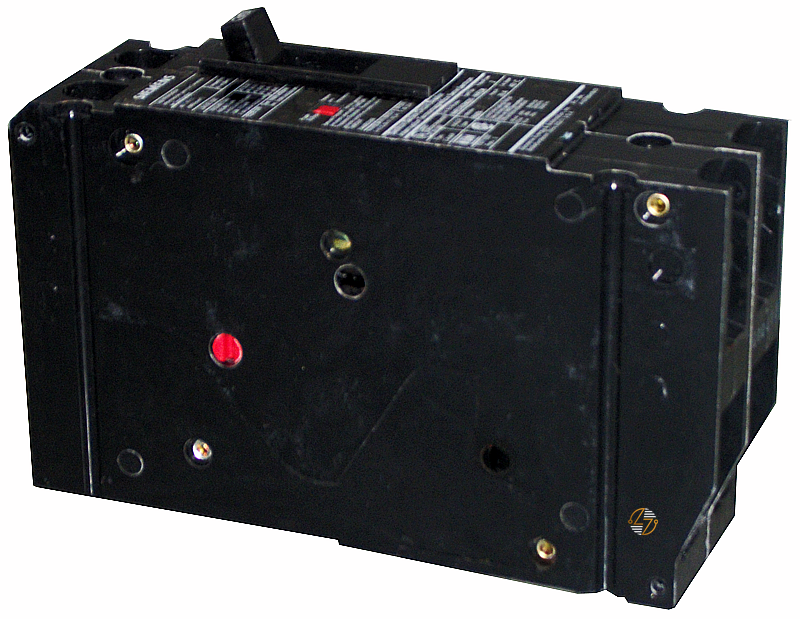

When you’re replacing a circuit breaker in existing equipment, getting the details right matters. The Siemens HHED62B090 is a 90 Amp, 2-pole HHED6 molded case circuit breaker with a Sentron-style design. It carries interrupting ratings of 18kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC, giving you clear ratings to compare against the requirements of the existing electrical system.

Key Features and Benefits

• 90 Amp, 2-pole configuration for compatible electrical distribution applications
• HHED6 type makes identification easier when matching an existing breaker
• HACR-rated for applicable heating, air-conditioning, and refrigeration equipment
• 40°C rated
• Load-side terminals included for the specified installation configuration
• Suitable for reverse feed when permitted by the equipment and application
• 2.00-inch width and defined case dimensions help with physical fit checks

Technical Specifications

• Part Number: HHED62B090

• Type: HHED6

• Breaker Style: Sentron-style molded case circuit breaker

• Poles: 2

• Amperage: 90 Amps

• A.I.C. Rating at 600VAC: 18kA

• A.I.C. Rating at 480VAC: 65kA

• A.I.C. Rating at 240VAC: 100kA

• Temperature Rating: 40°C

• HACR Rated: Yes

• Reverse Feed Suitable: Yes

• Terminals: Load-side terminals included

• Height: 6.63 in.

• Width: 2.00 in.

• Depth: 3.92 in.

• Overall Dimensions: 2.00"W x 6.63"H x 3.92"D

• Approx. Ship Weight: 4.00 lbs.


Material Compliance and Certifications

The supplied product specifications identify the HHED62B090 as HACR-rated and specify a 40°C rating. No additional material-compliance or certification information was provided for this particular part number. Rather than assume certifications that may not apply, requirements involving UL, CSA, RoHS, REACH, or other standards should be verified from the breaker label or applicable manufacturer documentation.

Where It Works Best

The HHED62B090 makes the most sense when maintaining or repairing compatible electrical equipment that calls for an HHED6 90 Amp, 2-pole molded case circuit breaker. This is especially relevant with existing and legacy electrical distribution systems, where the correct breaker type, dimensions, interrupting rating, and terminal arrangement can be just as important as the amp rating itself.
