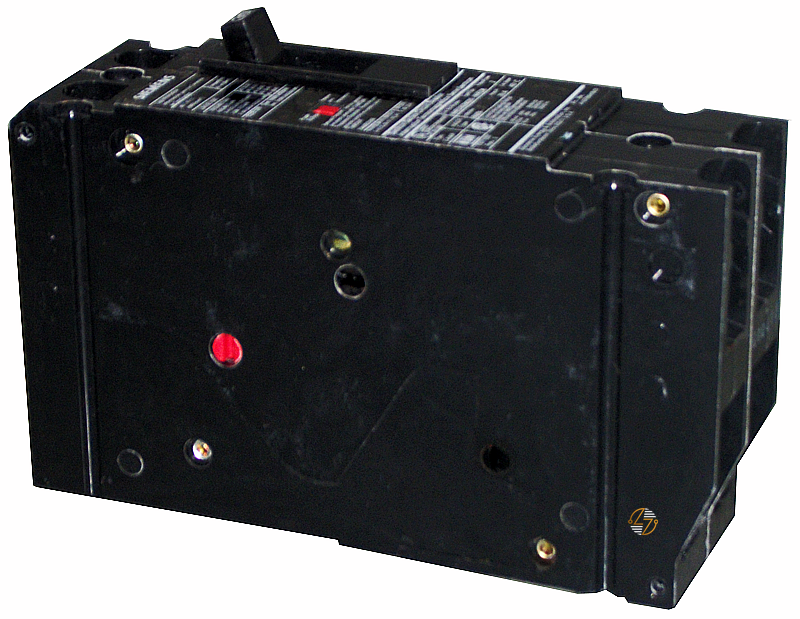

HHED62B080L - 80Amp Circuit Breaker

HHED62B080L - 80Amp Circuit Breaker

The Siemens HHED62B080L is an 80 Amp, 2-pole HHED6 Sentron-style molded case circuit breaker designed for electrical systems requiring its specific form, fit, and electrical characteristics. When your application specifically calls for an HHED6 80 Amp 2-pole circuit breaker, the HHED62B080L offers the ratings and configuration needed to maintain the intended function of the electrical system. It's a straightforward replacement component built to last when properly installed and operated within its specified ratings.

Key Features and Benefits

• 80 Amp, 2-pole configuration for applications requiring this specific electrical rating
• HHED6 molded case circuit breaker design for compatible electrical distribution equipment
• Sentron-style construction for matching applicable existing and legacy installations
• 40°C rated for its specified operating characteristics
• HACR-rated for applicable heating, air-conditioning, and refrigeration equipment
• Includes line- and load-side terminals
• Suitable for reverse feed in applications where reverse-feed installation is permitted
• 2.00-inch width helps with verifying physical fit in compatible equipment
• Clearly defined dimensions make it easier to compare against an existing breaker before replacement

Technical Specifications

• Part Number: HHED62B080L

• Type: HHED6

• Breaker Type: Molded Case Circuit Breaker

• Style: Sentron

• Amperage: 80 Amps

• Poles: 2

• A.I.C. Rating at 600VAC: 18kA

• A.I.C. Rating at 480VAC: 65kA

• A.I.C. Rating at 240VAC: 100kA

• Temperature Rating: 40°C

• HACR Rated: Yes

• Reverse Feed: Suitable

• Terminals: Line- and load-side terminals included

• Height: 6.63 in.

• Width: 2.00 in.

• Depth: 3.92 in.

• Dimensions: 2.00"W x 6.63"H x 3.92"D

• Approx. Shipping Weight: 4.00 lbs.


Material Compliance and Certifications

The supplied specifications identify the HHED62B080L as HACR-rated and rated at 40°C. No additional material-compliance or certification information was provided. Accordingly, claims regarding certifications or standards such as RoHS, REACH, UL, CSA, or other regulatory programs should only be added when supported by applicable manufacturer documentation or product labeling.

Where It Works Best

The HHED62B080L 80 Amp circuit breaker is best suited for compatible electrical distribution systems that specifically require an HHED6, 2-pole molded case circuit breaker with matching physical dimensions and electrical ratings. It can be especially useful for maintenance and replacement work involving existing or legacy electrical equipment, where preserving the original breaker's form, fit, and intended function is important.
