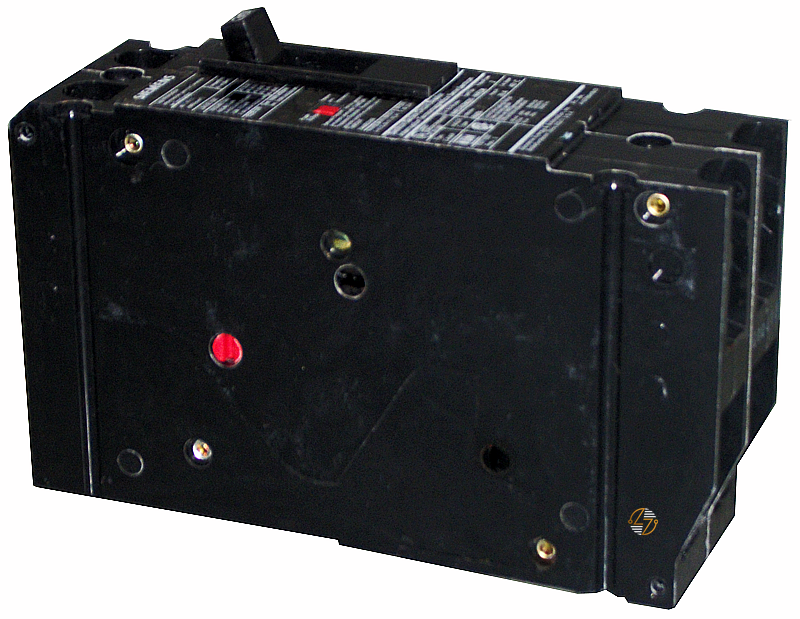

HHED62B080 - 80Amp Circuit Breaker

HHED62B080 - 80Amp Circuit Breaker

When you’re replacing a circuit breaker in an existing electrical system, the details matter. The Siemens HHED62B080 is an 80 Amp, 2-pole HHED6 molded case circuit breaker in the Sentron style, designed for installations that call for this specific configuration and rating.

Key Features and Benefits

• 80 Amp, 2-pole design for systems requiring this exact configuration
• HHED6 molded case construction for compatible electrical equipment
• Sentron-style breaker with clearly defined electrical and dimensional specifications
• HACR-rated at 40°C for applicable heating, air-conditioning, and refrigeration systems
• Load-side terminals included
• Suitable for reverse feed when permitted by the equipment and application
• Just 2 inches wide, helping simplify physical fit verification

Technical Specifications

• Part Number: HHED62B080

• Type: HHED6

• Breaker Type: Molded Case Circuit Breaker

• Style: Sentron

• Amperage: 80 Amps

• Poles: 2

• A.I.C. Rating at 600VAC: 18kA

• A.I.C. Rating at 480VAC: 65kA

• A.I.C. Rating at 240VAC: 100kA

• Temperature Rating: 40°C

• HACR Rated: Yes

• Reverse Feed: Suitable

• Terminals: Load-side terminals included

• Height: 6.63 in.

• Width: 2.00 in.

• Depth: 3.92 in.

• Dimensions: 2.00"W x 6.63"L x 3.92"D

• Approx. Shipping Weight: 4.00 lbs.


Material Compliance and Certifications

The available specifications identify the HHED62B080 as HACR-rated with a 40°C rating. No additional material-compliance certifications were provided with the supplied product data, so claims regarding standards such as RoHS or REACH should only be made when supported by applicable manufacturer documentation.

Where It Works Best

The HHED62B080 makes the most sense in compatible electrical distribution equipment that calls for an 80 Amp, 2-pole HHED6 molded case circuit breaker. It is especially useful when maintaining an existing or legacy installation where matching the original breaker's physical configuration and electrical characteristics is important.
