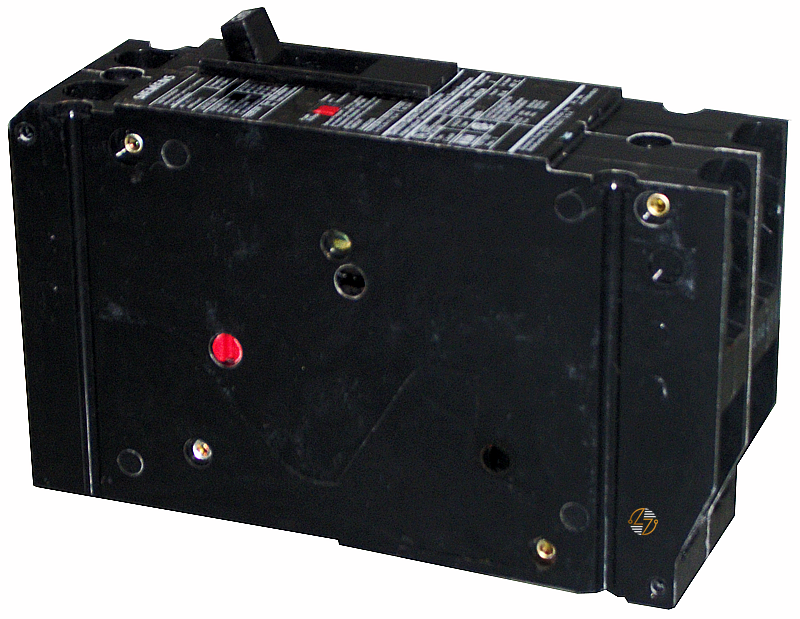

HHED62B070L - 70Amp Circuit Breaker

HHED62B070L - 70Amp Circuit Breaker

The Siemens HHED62B070L is a 70 Amp, 2-pole molded case circuit breaker from the HHED6 family, designed for compatible Sentron-style electrical equipment. If you're replacing an existing breaker, the details matter—and this unit gives you several clear specifications to match against your application.

Key Features and Benefits

• 70 Amp, 2-pole design for systems requiring this specific configuration
• HHED6 molded case construction for compatible Sentron-style applications
• HACR-rated at 40°C for applicable heating, air-conditioning, and refrigeration equipment
• Line- and load-side terminals included, simplifying matching to the intended installation
• Suitable for reverse-feed applications where permitted by the equipment and installation requirements
• 2-inch-wide profile makes physical fit easier to verify before installation
• A practical choice for maintaining compatible existing and legacy electrical equipment

Technical Specifications

• Manufacturer: Siemens

• Part Number: HHED62B070L

• Breaker Type: HHED6 Molded Case Circuit Breaker

• Style: Sentron

• Amperage: 70 Amps

• Poles: 2

• A.I.C. Rating at 600VAC: 18kA

• A.I.C. Rating at 480VAC: 65kA

• A.I.C. Rating at 240VAC: 100kA

• Temperature Rating: 40°C

• HACR Rated: Yes

• Reverse Feed: Suitable

• Terminals: Line and load side included

• Height: 6.63 in.

• Width: 2.00 in.

• Depth: 3.92 in.

• Overall Dimensions: 2.00"W x 6.63"H x 3.92"D

• Approx. Ship Weight: 4.00 lbs.


Material Compliance and Certifications

The available specifications identify the HHED62B070L as HACR-rated with a 40°C temperature rating. No additional material-compliance certifications were provided, so claims regarding RoHS, REACH, or other material standards should not be made without supporting manufacturer documentation.

Where It Works Best

The HHED62B070L 70 Amp circuit breaker is best suited to compatible electrical distribution equipment that calls for an HHED6, 2-pole, 70 Amp molded case breaker with the corresponding voltage and interrupting ratings. It's particularly relevant when maintaining an existing or legacy installation where matching the breaker's original form, fit, and function is important.
