HHED62B070 - 70Amp Circuit Breaker

HHED62B070 - 70Amp Circuit Breaker

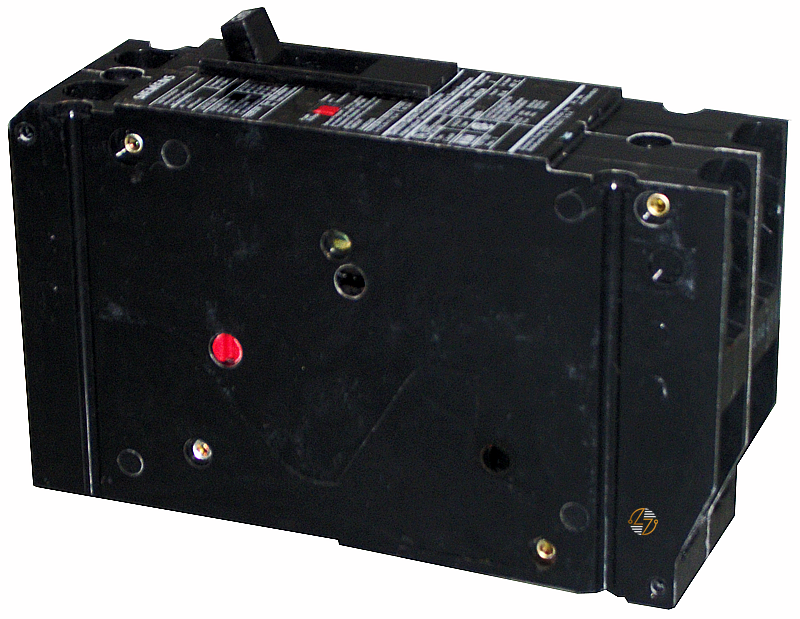

The Siemens HHED62B070 is a 70 Amp, 2-pole HHED6 molded case circuit breaker made for your electrical equipment that uses this specific breaker configuration. For replacement work, that distinction matters. A breaker can have the right amperage and still be wrong for the equipment because the frame, voltage rating, interrupting capacity, terminals, or dimensions don't match.

The HHED62B070 is rated 18kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC. It's a Sentron-style breaker, HACR-rated for 40°C, and comes with load-side terminals. The breaker is also suitable for reverse feed when the installation and equipment are designed for it.

Key Features and Benefits

• 70 Amp, 2-pole molded case circuit breaker
• HHED6 breaker type
• Sentron-style construction
• HACR-rated for 40°C applications
• Includes load-side terminals
• Suitable for reverse-feed applications when permitted
• 2.00-inch-wide configuration for compatible equipment

Technical Specifications

• Manufacturer: Siemens

• Part Number: HHED62B070

• Product Type: Molded Case Circuit Breaker

• Type: HHED6

• Style: Sentron

• Amperage: 70 Amps

• Poles: 2

• AIC at 600VAC: 18kA

• AIC at 480VAC: 65kA

• AIC at 240VAC: 100kA

• Temperature Rating: 40°C

• HACR Rated: Yes

• Reverse Feed: Suitable

• Terminals: Load-side terminals included

• Width: 2.00 in.

• Height: 6.63 in.

• Depth: 3.92 in.

• Dimensions: 2.00"W × 6.63"H × 3.92"D

• Approximate Ship Weight: 4.00 lb


Material Compliance and Certifications

The supplied specifications identify the HHED62B070 as HACR-rated and rated for 40°C applications. No specific RoHS, REACH, or additional material-compliance information was provided for this part number, so those claims should not be assumed.

Where It Works Best

Typical applications include:

• Existing and legacy electrical distribution equipment
• Equipment designed for HHED6 breakers
• 70 Amp, 2-pole applications
• Compatible HACR applications
• Equipment requiring load-side terminals
• Approved reverse-feed installations
