HHED62B060L - 60Amp Circuit Breaker

HHED62B060L - 60Amp Circuit Breaker

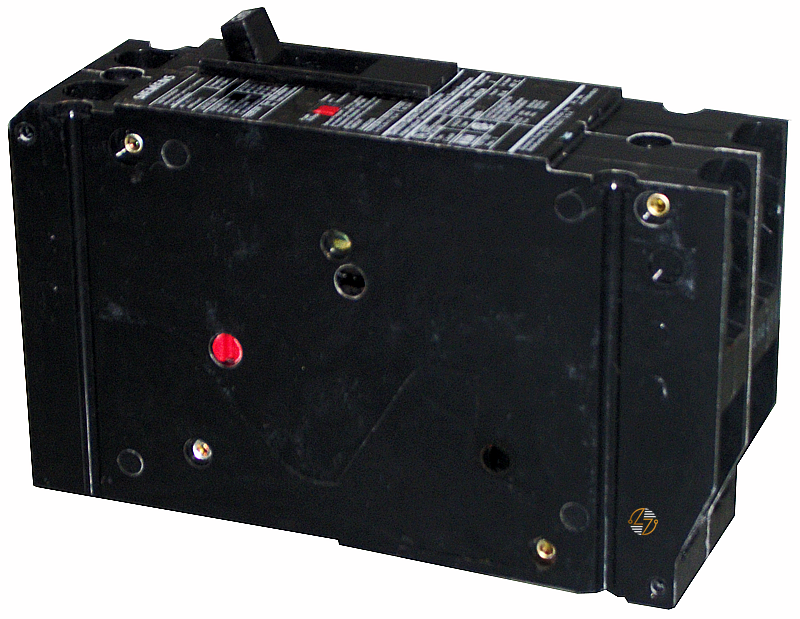

The Siemens HHED62B060L is a 60 Amp, 2-pole HHED6 molded case circuit breaker intended for your compatible electrical equipment that calls for this exact configuration. For maintenance teams working with older or already-installed equipment, the HHED62B060L is mainly about keeping your existing system consistent. Match the amperage, poles, voltage, interrupting rating, terminal setup, and physical dimensions before installation.

Key Features and Benefits

• 60 Amp, 2-pole molded case circuit breaker
• Rated for 40°C
• Includes line- and load-side terminals
• Suitable for reverse feed where permitted
• Sentron-style construction
• Useful for maintenance and replacement in compatible legacy equipment
• Helps preserve the original form, fit, and electrical function
• Built to last when correctly applied and installed

Technical Specifications

• Manufacturer: Siemens

• Catalog Number: HHED62B060L

• Product Type: Molded Case Circuit Breaker

• Type: HHED6

• Amperage Rating: 60 Amps

• Poles: 2

• Interrupting Rating at 600VAC: 18kA

• Interrupting Rating at 480VAC: 65kA

• Interrupting Rating at 240VAC: 100kA

• Temperature Rating: 40°C

• HACR Rating: Yes

• Reverse Feed: Suitable

• Terminals: Line- and load-side terminals included

• Width: 2.00 in.

• Height: 6.63 in.

• Depth: 3.92 in.

• Dimensions: 2.00"W × 6.63"H × 3.92"D

• Approximate Ship Weight: 4.00 lb


Material Compliance and Certifications

The available specifications identify the HHED62B060L as HACR-rated and suitable for use at 40°C. No additional RoHS, REACH, or other material-compliance details were included in the supplied product information, so those claims should not be assumed.

If a project has specific certification, environmental, or code requirements, confirm those requirements against the applicable breaker and equipment documentation before installation.

Where It Works Best

Typical uses include:

• Existing and legacy electrical distribution equipment
• Applications requiring a 60 Amp, 2-pole breaker
• HACR applications where this breaker type is compatible
• Installations using line- and load-side terminals
• Compatible reverse-feed applications
• Replacement work where keeping the original breaker setup intact is important
