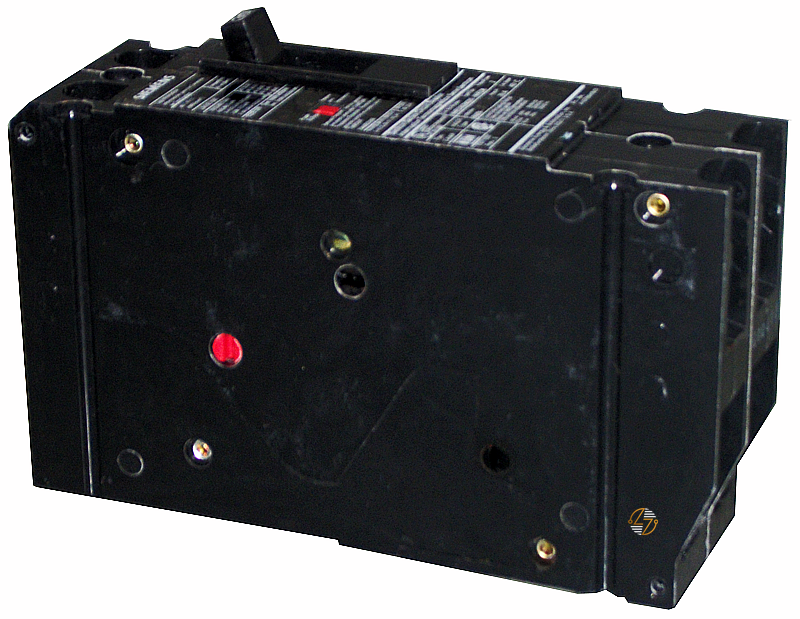

HHED62B060 - 60Amp Circuit Breaker

HHED62B060 - 60Amp Circuit Breaker

The Siemens HHED62B060 is an ED 2-pole circuit breaker rated at 60 amps, 600 volts, and 18kA interrupting capacity, with a lug connection configuration. Designed for compatible electrical distribution equipment, this breaker is especially useful when maintaining legacy systems that require the HHED62B060 form, fit, ratings, and connection arrangement. When you're replacing an existing circuit breaker, the catalog number is only the beginning—the amperage, voltage, pole count, interrupting rating, termination style, and equipment compatibility all need to line up.

Key Features and Benefits

• 60 Amp rating — Matches electrical equipment and applications specified for a 60A circuit breaker.
• 2-pole configuration — Designed for compatible two-pole electrical applications.
• 600V rating — Provides the specified voltage rating required by compatible systems.
• ED breaker configuration — Intended for equipment designed to accept the corresponding Siemens ED breaker type.
• Lug connection — Provides the termination arrangement specified for this breaker configuration.
• HHED62B060 catalog identification — Helps maintenance professionals match the breaker against equipment documentation and an existing unit.

Technical Specifications

• Manufacturer: Siemens

• Catalog Number / MFN: HHED62B060

• Product Type: Circuit Breaker

• Breaker Type: ED

• Amperage Rating: 60 Amps

• Number of Poles: 2

• Voltage Rating: 600V

• Interrupting Rating: 18kA

• Connection Type: Lug

• UPC: 783643307933

• Net Weight: 2.8 lb

• Country of Origin: Mexico


Material Compliance and Certifications

• RoHS: Manufacturer data states compliance with substance restrictions according to the RoHS directive since April 2, 2009.
• REACH Article 33: Manufacturer documentation provides REACH information relating to the duty to inform according to the current candidate list.

• WEEE Take-Back Obligations: Listed by the manufacturer as “-”.
• Export Control Classification: ECCN EAR99 / AL: N.


Where It Works Best

Typical applications and suitability include:

• Legacy electrical systems requiring the HHED62B060 configuration
• Compatible electrical distribution equipment designed for an ED circuit breaker
• Maintenance and repair applications requiring a 60 Amp breaker
• Systems designed for a 2-pole circuit breaker
• Compatible equipment requiring a breaker rated at 600V
• Equipment designed around the corresponding lug connection
• Form, fit, and functional replacement of an existing HHED62B060
• Maintenance situations where matching the original breaker specifications is important
