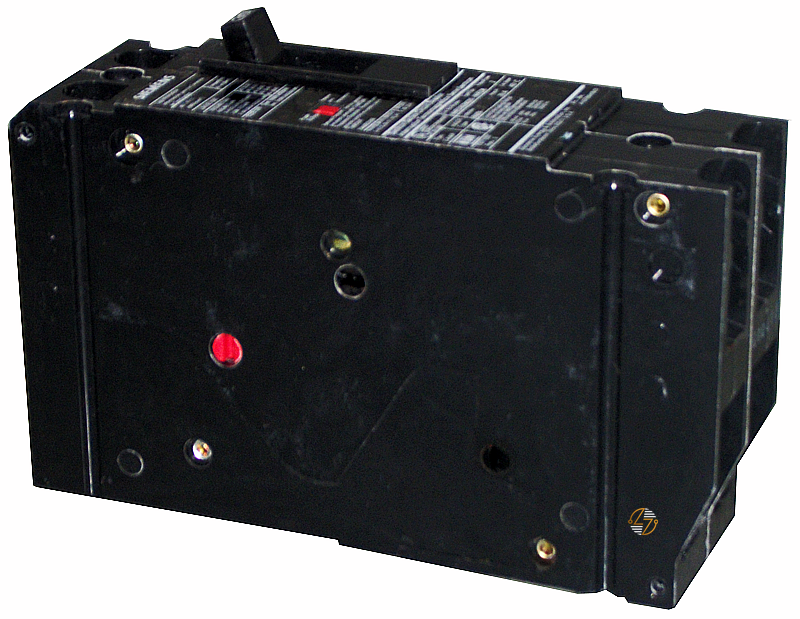

HHED62B050L - 50Amp Circuit Breaker

HHED62B050L - 50Amp Circuit Breaker

The Siemens HHED62B050L is an ED circuit breaker configured for 50 amps, two poles, 600 volts, and an 18kA interrupting rating, with lugs included. Its lug-equipped design provides the specified termination arrangement, while the clearly identified HHED62B050L catalog number makes it easier to compare the breaker with equipment documentation and the unit being replaced. If your application calls for a Siemens ED 2-pole 50A 600V 18kA circuit breaker with lugs, this model provides the defined characteristics needed for a like-for-like replacement when compatibility is confirmed. It was built to last in the applications for which it was designed, without requiring unnecessary changes to the existing system.

Key Features and Benefits

• 50 Amp current rating for equipment designed around this specific amperage
• 2-pole configuration for compatible two-pole applications
• 600V rating for systems requiring the stated voltage capability
• Lugs included, providing the intended connection arrangement
• ED breaker configuration for compatible existing electrical equipment
• Catalog number HHED62B050L supports precise part identification during maintenance and replacement
• Well suited to legacy system maintenance where matching the original breaker configuration is important

Technical Specifications

• Manufacturer: Siemens

• Catalog Number / MFN: HHED62B050L

• Product Type: Circuit Breaker

• Breaker Type: ED

• Amperage Rating: 50 Amps

• Number of Poles: 2

• Voltage Rating: 600V

• Interrupting Rating: 18kA

• Connection: Lugs

• UPC: 783643404076

• Net Weight: 2.91 lb

• Packaging Dimensions: 6.693 × 2.756 × 5.906 in.

• Country of Origin: Mexico


Material Compliance and Certifications

Manufacturer data for the HHED62B050L references REACH Article 33 information concerning substances on the current candidate list. A SCIP number is listed as not available, and specific RoHS substance-restriction compliance information is also listed as not available for this catalog number. The product carries an export-control classification of ECCN EAR99 / AL: N.

Where It Works Best

Typical suitability includes:

• Existing equipment designed for the HHED62B050L configuration
• Compatible Siemens ED breaker applications
• Legacy electrical equipment requiring matching form, fit, and function
• Maintenance and repair of existing electrical distribution equipment
• Applications specified for a 50 Amp, 2-pole circuit breaker
• Equipment requiring a breaker rated for 600V
• Installations designed for the corresponding lug termination
• Replacement of an existing HHED62B050L where all compatibility requirements have been verified
