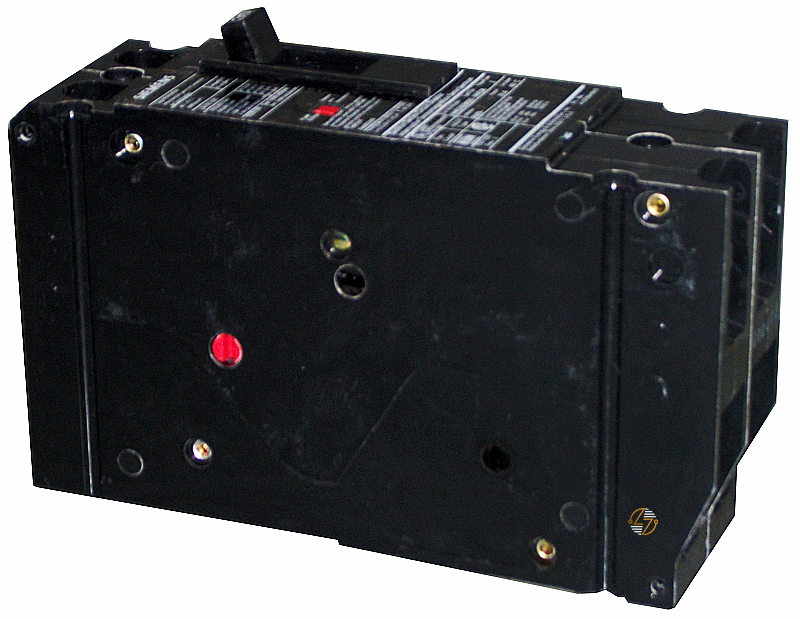

The Siemens HHED62B040L is a 40 Amp, 2-pole ED circuit breaker rated for 600V with an 18kA interrupting rating and lug connections. For maintenance teams, electricians, and facility managers working with existing equipment, the important thing is getting the details right.

If you're replacing an existing breaker, start with the catalog number on the old unit, then verify the electrical ratings and connection requirements. The HHED62B040L combines a 40A rating with two poles, a 600V rating, 18kA interrupting capacity, and lug connections.

Key Features and Benefits

• 40 Amp rating for applications requiring a 40A breaker
• 2-pole configuration for compatible two-pole installations
• 600V rating
• Siemens ED breaker configuration
• Catalog number HHED62B040L for precise product identification
• Well suited to maintenance and replacement work in compatible legacy electrical systems
• Helps preserve the intended form, fit, and function of existing equipment
• Built to last when properly selected, installed, and used within its specified ratings

Technical Specifications

• Manufacturer: Siemens

• Catalog Number / MFN: HHED62B040L

• Product Type: Circuit Breaker

• Breaker Type: ED

• Amperage Rating: 40 Amps

• Number of Poles: 2

• Voltage Rating: 600V

• Interrupting Rating: 18kA

• Connection Type: Lugs

• UPC: 783643404052

• Net Weight: 2.91 lb

• Packaging Dimensions: 6.693 x 2.756 x 5.906 in.

• Country of Origin: Mexico

• -

Material Compliance and Certifications

Manufacturer data lists the HHED62B040L under export classification ECCN EAR99 / AL: N. REACH Article 33 information is referenced in the manufacturer's product data.

For this particular catalog number, RoHS substance-restriction compliance information is listed as not available, and a SCIP number is also listed as not available.

Where It Works Best

Typical uses include:

• Maintenance of compatible Siemens ED electrical equipment
• Legacy electrical systems requiring this breaker configuration
• Replacement of an existing HHED62B040L where specifications and fit have been verified
• Electrical repair and facility maintenance projects
• Equipment requiring a 40 Amp, 2-pole breaker
• Applications requiring a breaker rated for 600V
• Systems requiring an 18kA interrupting rating
• Installations designed for the corresponding lug connection arrangement
