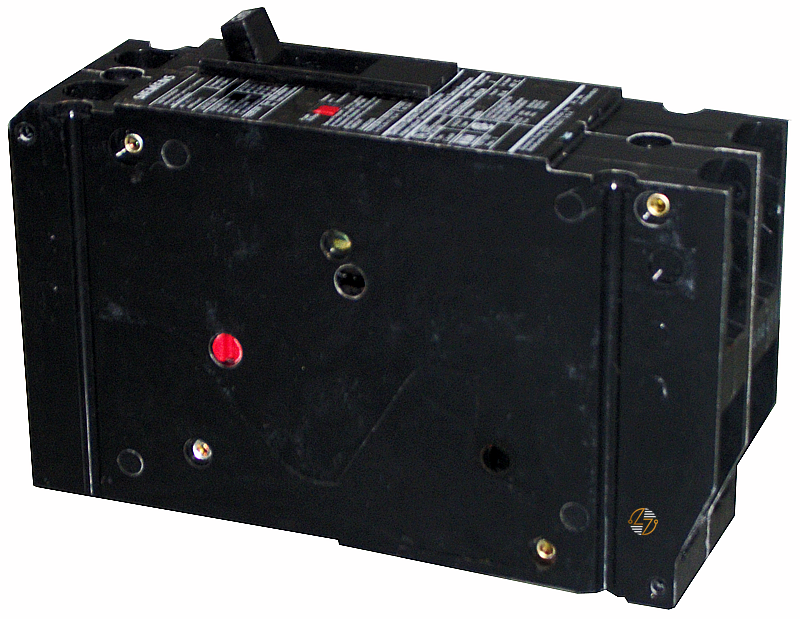

HHED62B030L - 30Amp Circuit Breaker

HHED62B030L - 30Amp Circuit Breaker

The HHED62B030L is a 30 Amp, 2-pole Siemens ED circuit breaker rated for 600V, with an 18kA interrupting rating and lug connections. It’s mainly used when you're working with existing electrical equipment that calls for this specific breaker configuration.

For replacement work, the catalog number is a good place to start, but it isn’t the only thing to check. Two breakers may have the same amperage and still be wrong for the same application. Voltage, poles, interrupting rating, connection style, physical fit, and the requirements of the equipment all play a part.

Key Features and Benefits

• 30 Amp Siemens ED circuit breaker
• Two-pole configuration
• Rated for 600V
• Intended for compatible existing electrical equipment
• Useful for legacy-system maintenance and replacement work
• Helps preserve the original form, fit, and function of compatible equipment
• Exact HHED62B030L catalog number simplifies part identification
• Built to last when correctly selected and installed

Technical Specifications

• Manufacturer: Siemens

• Catalog Number: HHED62B030L

• Manufacturer Part Number (MFN): HHED62B030L

• Product Type: Circuit Breaker

• Breaker Type: ED

• Amperage Rating: 30 Amps

• Poles: 2

• Voltage Rating: 600V

• Interrupting Rating: 18kA

• Connection Type: Lugs

• UPC: 783643200456

• Net Weight: 2.91 lb

• Packaging Dimensions: 6.693 x 2.756 x 5.906 in.

• Country of Origin: Mexico


Material Compliance and Certifications

Available manufacturer information for the HHED62B030L lists its export classification as ECCN EAR99 / AL: N. RoHS substance-restriction compliance information is listed as not available. REACH Article 33 information is referenced in the manufacturer data, while a SCIP number is also listed as not available.

If an installation has specific environmental, regulatory, or certification requirements, those requirements should be checked against the applicable product and equipment documentation before installation.

Where It Works Best

• Compatible Siemens ED electrical equipment
• Existing and legacy electrical systems
• Applications requiring a 30 Amp, 2-pole breaker
• Systems requiring a 600V breaker rating
• Applications specified for an 18kA interrupting rating
• Equipment using the corresponding lug connection arrangement
• Replacement of an existing HHED62B030L where compatibility has been confirmed
• Maintenance work where keeping the existing equipment configuration is important
• Applications where matching the original breaker’s form, fit, and function is the main requirement
