HHED62B020L - 20Amp Circuit Breaker

HHED62B020L - 20Amp Circuit Breaker

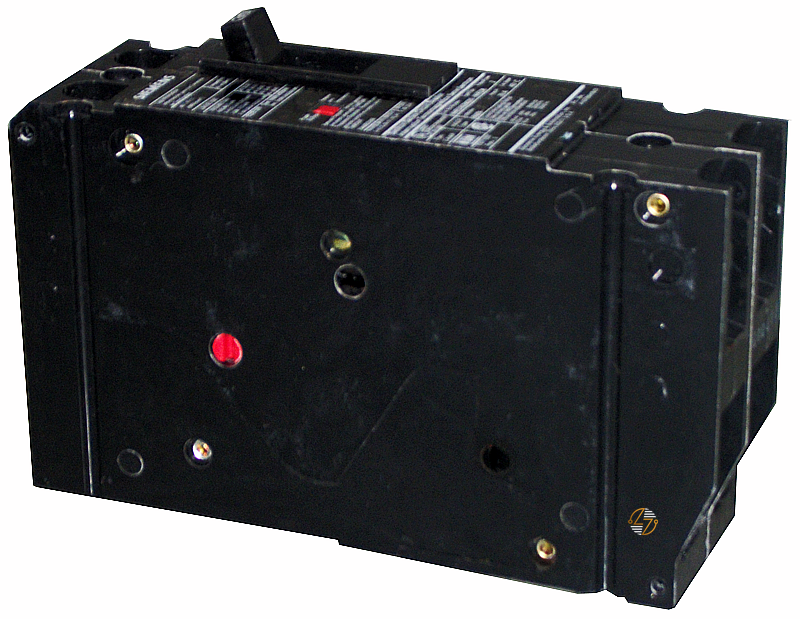

When you're replacing a circuit breaker in existing equipment, getting the details right matters. The Siemens HHED62B020L is an ED-type, 2-pole circuit breaker rated at 20 amps and 600 volts, with an 18kA interrupting rating and lug connections. Its combination of ratings and configuration makes it well suited for maintenance and replacement work involving compatible legacy Siemens electrical equipment.

Key Features and Benefits

• 20-amp rating: Suitable for compatible equipment requiring a 20A breaker.
• Two-pole configuration: Matches applications designed around a 2-pole ED breaker.
• Rated for 600V: Supports electrical systems requiring this specific voltage rating.
• Lug connections: Provides the termination arrangement associated with the HHED62B020L.
• ED breaker type: An important detail when matching a breaker to existing Siemens equipment.
• Clear catalog identification: HHED62B020L makes it easier to confirm you're looking at the intended breaker rather than relying on amperage alone.
• Made for lasting service: Built to last when correctly applied, installed, and operated within its specified ratings.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: HHED62B020L

• Product Type: Circuit Breaker

• Type: ED

• Poles: 2

• Current Rating: 20A

• Voltage Rating: 600V

• Interrupting Rating: 18kA

• Termination: Lugs

• UPC: 783643404021

• Quantity Unit: 1 Piece

• Packaging Quantity: 1

• Net Weight: 0.022 lb

• Product Group: 3741

• Catalog ID: LV10.1

• Group Code: P360

• Country of Origin: Mexico

• Export Control Classification: ECCN EAR99 / AL: N


Material Compliance and Certifications

For the HHED62B020L, manufacturer information lists the export control classification as ECCN EAR99 / AL: N. RoHS substance-restriction compliance information is listed as not available, as is the SCIP number. REACH Article 33 information is identified separately in the manufacturer's product documentation.

Where It Works Best

The Siemens HHED62B020L 20A circuit breaker makes the most sense in existing electrical equipment that specifically calls for its combination of ED configuration, two poles, 20A rating, 600V rating, 18kA interrupting capacity, and lug connections.
