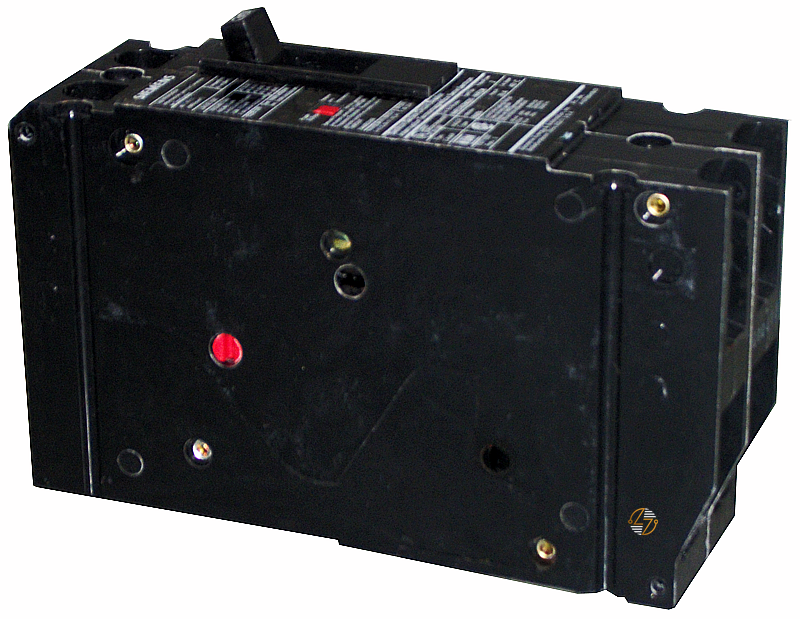

HHED62B020 - 20Amp Circuit Breaker

HHED62B020 - 20Amp Circuit Breaker

The HHED62B020 is a 2-pole, 20-amp circuit breaker rated for 600V AC. It protects your circuits from overloads and short circuits and is suitable for commercial and industrial panelboards. With lug terminations for both line and load wiring, it fits directly into compatible distribution systems and simplifies replacement or maintenance.

This breaker has an 18kA interrupting rating, making it appropriate for systems with fault currents within its rating.

Key Features and Benefits

• 20A, 2-pole breaker: 20A, 2-pole breaker
• Rated for 600V AC: Rated for 600V AC
• 18kA interrupting capacity: 18kA interrupting capacity
• Lug terminations for line and load connections: Lug terminations for line and load connections
• Toggle handle for manual operation: Toggle handle for manual operation
• Designed for replacement and maintenance: Designed for replacement and maintenance
• Fits standard commercial and industrial panels: Fits standard commercial and industrial panels
• Compact, straightforward design: Compact, straightforward design


Technical Specifications

• Catalog Number: HHED62B020

• Poles: 2

• Ampere Rating: 20A

• Voltage Rating: 600V AC

• Interrupting Capacity: 18kA

• Connection Type: Lugs

• Net Weight: 2.8 lb

• Control Type: Toggle Handle


Material Compliance and Certifications

• RoHS Compliance: RoHS compliant
• REACH Information: REACH information available
• Standards Compliance: Meets applicable electrical codes and standards
• Application Suitability: Suitable for commercial and industrial applications


Where It Works Best

• Commercial distribution panels
• Industrial facilities
• Branch circuit protection
• Panel maintenance and replacement
• Existing power distribution systems
• Manufacturing facilities
• Utility and infrastructure applications

The HHED62B020 provides a simple, direct replacement for 2-pole 20A circuits. Its form, fit, and rated capacity allow it to integrate seamlessly into existing systems, keeping circuits protected and operational.
