HHED62B015L - 15Amp Circuit Breaker

HHED62B015L - 15Amp Circuit Breaker

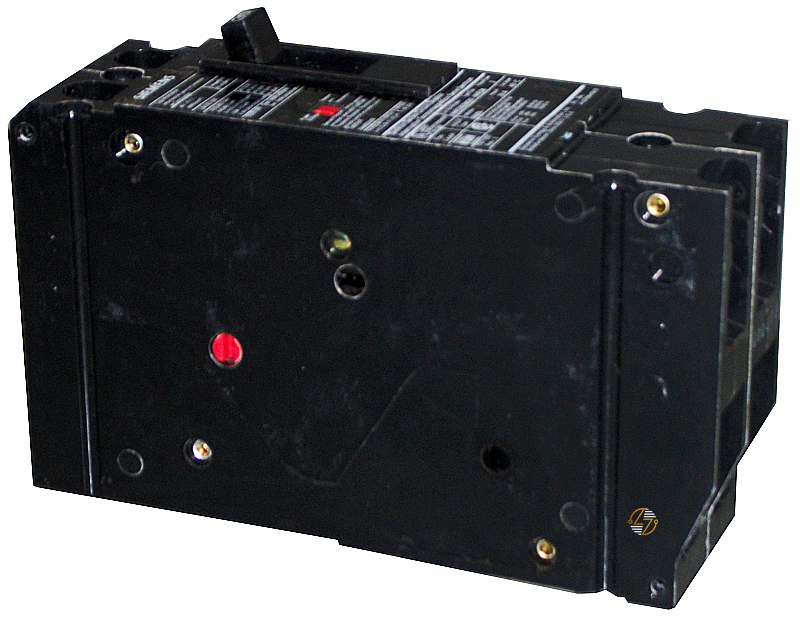

When your existing electrical system calls for a specific breaker, getting the details right matters. The Siemens HHED62B015L is an ED-type, 2-pole circuit breaker rated at 15 amps and 600 volts, with an 18kA interrupting rating and lug connections. Its particular combination of amperage, voltage, pole configuration, and connection style makes it a practical option for compatible legacy equipment where maintaining the correct form, fit, and function is the priority.

Key Features and Benefits

• 15A, 2-pole configuration – Matches applications calling for a 15-amp breaker with two poles.
• Rated for 600V – Intended for compatible electrical systems within the breaker’s specified voltage rating.
• Lug connections – Uses the connection arrangement associated with this HHED62B015L configuration.
• Easy component identification – The HHED62B015L catalog number helps maintenance personnel accurately match the breaker to equipment documentation.
• Useful for legacy equipment – Well suited to compatible existing systems where maintaining the required form, fit, and function is important.
• Built to last – Made for lasting service when correctly installed and operated within its intended ratings.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: HHED62B015L

• Breaker Type: ED

• Product Type: Circuit Breaker

• Poles: 2

• Amperage: 15A

• Voltage Rating: 600V

• Interrupting Rating: 18kA

• Connection: Lugs

• UPC: 783643404014

• Commodity Code: 85362010

• Catalog ID: LV10.1

• Product Group: 3741

• Group Code: P360

• Net Weight: 2.888 lb
• Country of Origin: Mexico

• Export Control: ECCN: EAR99 / AL: N


Material Compliance and Certifications

Manufacturer information for the HHED62B015L identifies its export-control classification as ECCN EAR99 / AL: N. RoHS substance-restriction compliance information is listed as not available, and no SCIP number is provided in the available product data.

Where It Works Best

The Siemens HHED62B015L 15A circuit breaker makes the most sense in compatible existing or legacy electrical equipment that calls for this particular ED-type configuration. It is especially relevant for maintenance and replacement situations where the goal is to preserve the required 2-pole arrangement, 15A nominal current, 600V rating, 18kA interrupting rating, and lug connections.
