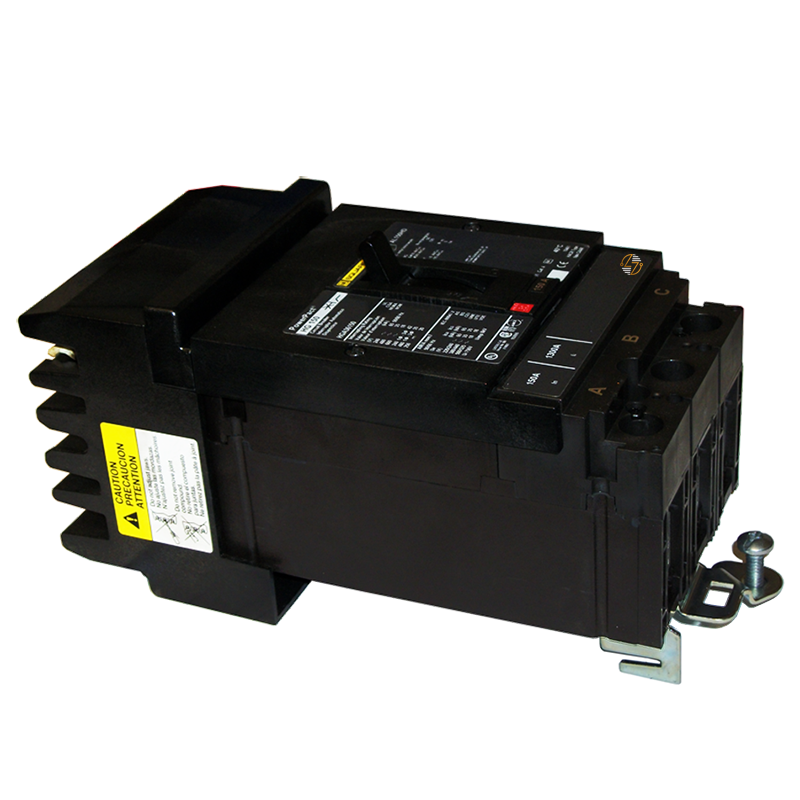

HGA36150 - 150 Amp Circuit Breaker

HGA36150 - 150 Amp Circuit Breaker

Keeping your electrical system safe doesn’t have to be complicated. The HGA36150 PowerPacT Circuit Breaker is designed to protect your circuits from overloads and short circuits without any hassle. Rated at 150A and capable of interrupting up to 18kA at 600VAC, it’s a reliable choice for busy commercial spaces or industrial setups. Its thermal-magnetic sensing reacts quickly when something goes wrong, and the dual-break rotating contacts help reduce stress on your system during short circuits—so it lasts longer and keeps things running smoothly.

Key Features and Benefits

• Handles Big Loads: Can safely interrupt up to 18kA at 600VAC.
• Reliable Protection: Thermal-magnetic sensing trips accurately, preventing damage to your circuits.
• Easy Installation: Fits I-Line panelboards and switchboards without extra effort.
• Built to Last: Dual-break contacts reduce wear, keeping the breaker performing consistently over time.

Technical Specifications

• Line Rated Current: 150A
• Breaking Capacity: 18kA at 600VAC
• Poles: 3
• Magnetic Hold Current: 900A
• Rated Voltage: 690V AC at 50/60Hz
• Continuous Current Rating: 80%
• Mounting: I-Line bracket
• Dimensions: 6.42" H × 4.09" W × 3.39" D
• Weight: 4.85 lbs
• Operating Temperature: -13°F to 158°F (-25°C to 70°C)

Material Compliance and Certifications

• RoHS & REACh Compliant: Meets strict global environmental and safety standards.
• Green Premium Certified: Designed with the environment in mind, without compromising performance.

Where It Works Best

• This breaker is perfect for commercial buildings, factories, and industrial environments where you need dependable circuit protection. It installs easily in I-Line panelboards and switchboards and is built to handle high fault currents safely. Simply put, it’s a piece of equipment you can trust to keep your electrical system running smoothly day in and day out.
