HFD63B125 - 125Amp Circuit Breaker

HFD63B125 - 125Amp Circuit Breaker

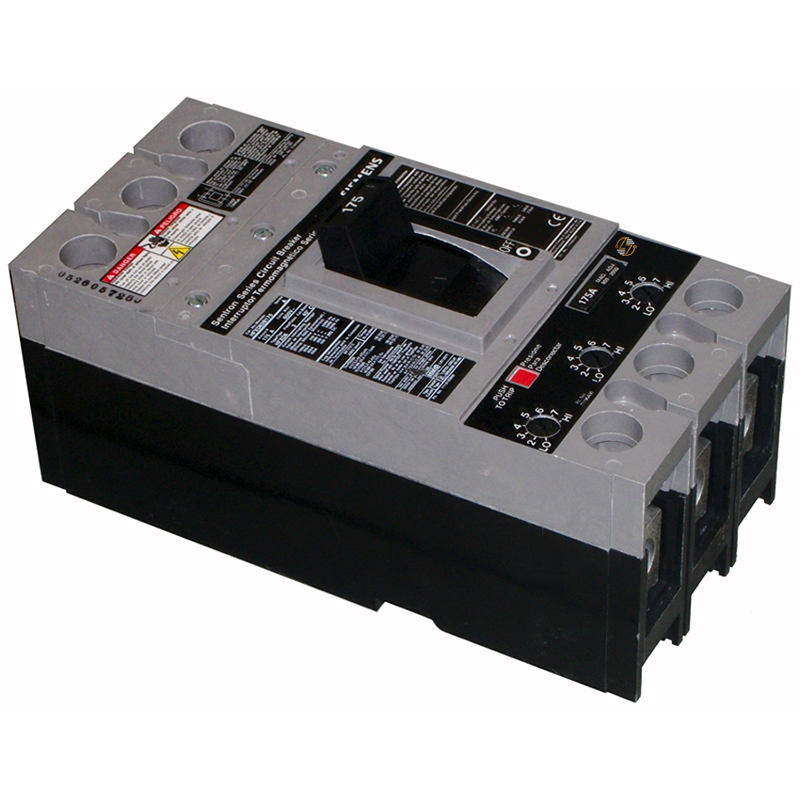

When you’re replacing a circuit breaker in existing equipment, getting the details right matters. The Siemens HFD63B125 is a 125-amp, 3-pole molded case circuit breaker designed for compatible SENTRON FD-frame electrical systems. It operates at up to 600VAC and uses a straightforward thermal-magnetic trip unit to provide overload and short-circuit protection.

Key Features and Benefits

• 125A, 3-pole configuration for compatible electrical distribution applications.
• FD frame design for equipment requiring this specific breaker frame.
• Rated for systems up to 600VAC.
• Thermal-magnetic trip unit provides overload and short-circuit protection.
• Includes TA1FD350A load-side lugs.
• Accepts 6 AWG–350 kcmil copper conductors.
• Accepts 4 AWG–350 kcmil aluminum conductors.
• Standard 40°C breaker configuration.
• Meets UL 489 and IEC 60947-2 standards.

Technical Specifications

• Catalog Number: HFD63B125

• Product Type: Molded Case Circuit Breaker

• Product Family: HFD6

• Series: SENTRON

• Frame: FD

• Amperage: 125A

• Poles: 3

• Maximum Voltage: 600VAC

• Trip Type: Thermal-Magnetic

• Interrupting Rating at 600V: 25 kAIC

• Interrupting Rating at 480V: 65 kAIC

• Standard Temperature Rating: 40°C

• Lugs: TA1FD350A load-side lugs

• Copper Wire Range: 6 AWG–350 kcmil

• Aluminum Wire Range: 4 AWG–350 kcmil

• Dimensions:
  • 4.5 in. W × 9.5 in. H × 4 in. D
• Net Weight: 8.576 lb

• UPC: 783643211810

• Country of Origin: Mexico


Material Compliance and Certifications

The HFD63B125 meets UL 489 and IEC 60947-2 standards, important considerations when verifying a breaker for a particular electrical installation. REACH Article 33 information is available as part of the product's material-compliance documentation. A SCIP number is listed as unavailable.

Where It Works Best

The HFD63B125 circuit breaker is intended for commercial and industrial electrical distribution applications that specifically call for a 125A, 3-pole FD-frame breaker with the corresponding voltage, interrupting, and connection ratings. It can be especially useful in maintenance and replacement situations where keeping the existing system's original form, fit, and electrical function is the goal.
