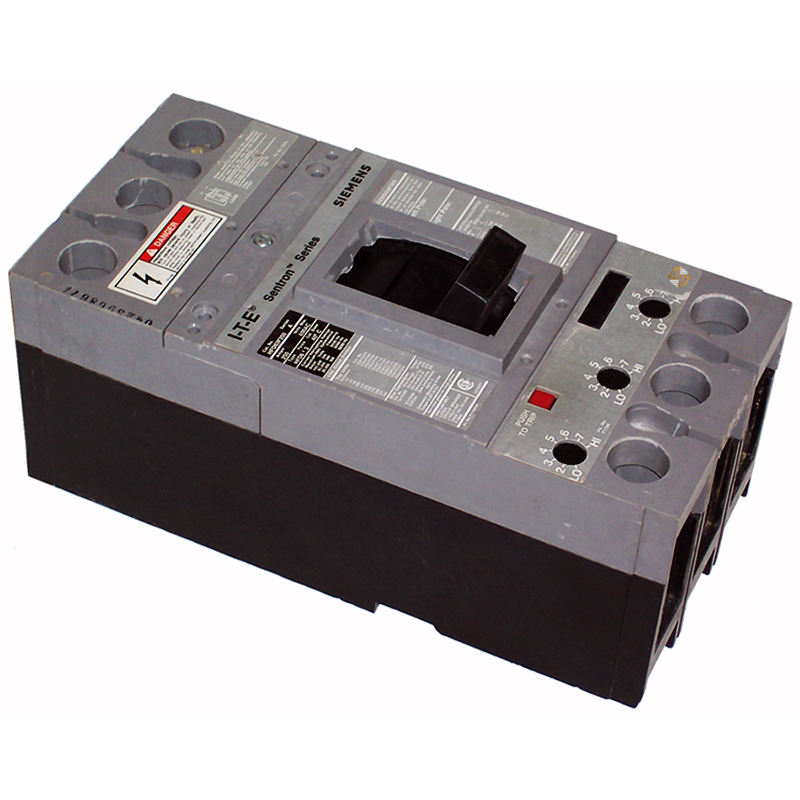

HFD62F250 - 250Amp Max. *Frame Only*

HFD62F250 - 250Amp Max. *Frame Only*

The Siemens HFD62F250 is a high-performance molded case circuit breaker frame, engineered to provide a reliable foundation for low-voltage electrical protection in commercial and industrial environments. Designed for high breaking capacity, this frame-only model requires a compatible trip unit to complete the setup and deliver comprehensive protection.

Key Features and Benefits:

• High Breaking Capacity: Rated for 25kAIC at 600V and 65kAIC at 480V, ensuring strong protection in fault conditions.
• Thermal-Magnetic Trip (Trip Unit Required): Paired with a compatible trip unit, it enables effective protection against overloads and short circuits.
• Versatile Wire Range: Accommodates 6 AWG - 350 KCM (CU) / 4 AWG - 350 KCM (AL), allowing for flexible installation.
• Durable Construction: Built for demanding commercial and industrial settings, providing dependable, long-term reliability.

Technical Specifications:

• Rated Current: 250A (frame only; trip unit required)
• Poles: 2
• Interrupting Rating: 25kAIC at 600V, 65kAIC at 480V
• Dimensions: 4.5 x 9.5 x 4 inches
• Weight: 6.601 lbs
• Wire Range: 6 AWG - 350 KCM (CU) / 4 AWG - 350 KCM (AL)

Material Compliance and Certifications:

• UL 489: Certified for North American safety standards.
• IEC 60947-2: Compliant with international standards for low-voltage switchgear.
• RoHS Compliant: Adheres to the Restriction of Hazardous Substances directive (effective April 2009).
• WEEE Directive: Fulfills the Waste Electrical and Electronic Equipment Directive for responsible disposal and recycling.

Suitability:

• The Siemens HFD62F250 circuit breaker frame is ideal for commercial and industrial applications that demand robust protection and flexibility. With high interrupting capacity and compatibility with international safety standards, this frame-only unit is suited for new installations or upgrades. When paired with the appropriate trip unit, it delivers the reliable protection and performance essential for today‰۪s electrical systems.
