HFD3225 225A Circuit Breaker

HFD3225 225A Circuit Breaker

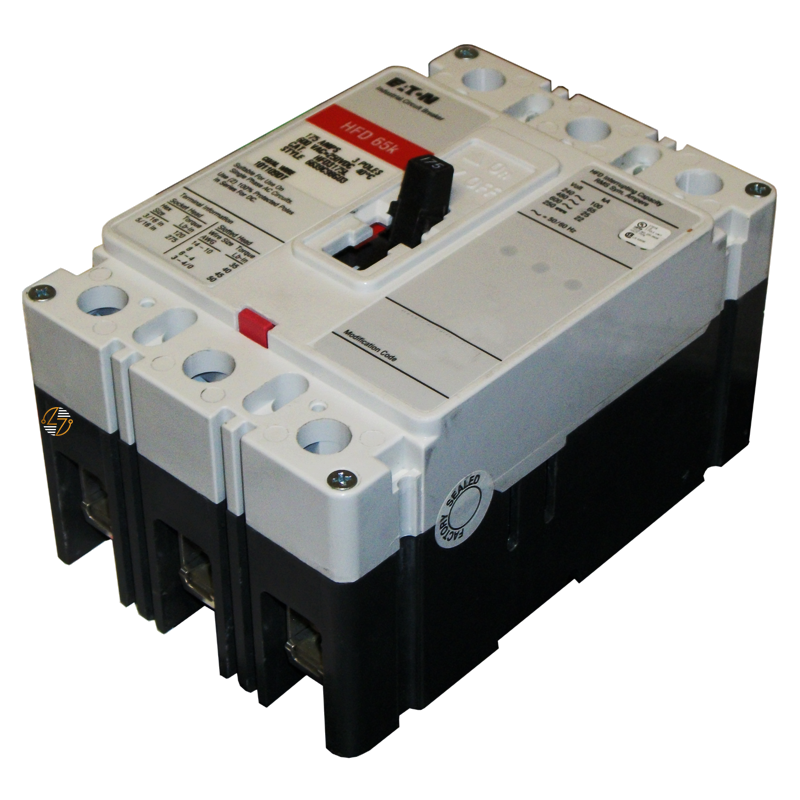

The Eaton HFD3225 molded case circuit breaker is a robust and reliable component designed to provide superior protection and efficiency for a wide range of electrical systems. Engineered for durability and performance, this three-pole circuit breaker features a fixed thermal and fixed magnetic trip type, ensuring consistent operation and protection against overloads and short circuits. With a 225-ampere capacity and voltage ratings of 600 VAC and 250 VDC, the HFD3225 is suitable for various commercial and industrial applications, making it an essential part of any electrical infrastructure that demands high performance and reliability.

Key Features and Benefits

• Durable Construction: The Eaton HFD3225 is built with high-quality materials to withstand demanding environments and provide long-term reliability.
• High Interrupting Capacity: With an interrupting capacity of 100 kAIC at 240 VAC and 65 kAIC at 480 VAC, this circuit breaker ensures superior protection against electrical faults.
• Fixed Thermal and Magnetic Trip: Offers reliable and consistent protection against overloads and short circuits, safeguarding your electrical system.
• Compact and Lightweight: Designed for easy installation and integration into various applications without occupying excessive space.

Technical Specifications

• Amperage Rating: 225 A
• Voltage Rating: 600 VAC, 250 VDC
• Interrupting Capacity: 100 kAIC at 240 VAC, 65 kAIC at 480 VAC
• Trip Type: Fixed Thermal, Fixed Magnetic
• Number of Poles: Three
• Frequency Rating: 50/60 Hz
• Dimensions: 3.38" (L) x 4.13" (H) x 4.13" (W)
• Weight: 4.4 lbs

Material Compliance and Certifications

• Certifications: UL Listed for safety and performance assurance.
• Warranty: Eaton Selling Policy 25-000, providing a warranty of one year from the date of installation or eighteen months from the date of shipment, whichever occurs first.

Suitability

• The Eaton HFD3225 circuit breaker is ideal for a wide range of commercial and industrial applications where reliable protection is crucial. Its robust construction and high interrupting capacity make it suitable for protecting electrical systems in manufacturing plants, commercial buildings, and other facilities with demanding electrical needs. Whether you are upgrading an existing system or installing a new one, the HFD3225 offers the performance and reliability you need to ensure uninterrupted operation and safety.
