HFD3200L 200A Circuit Breaker

HFD3200L 200A Circuit Breaker

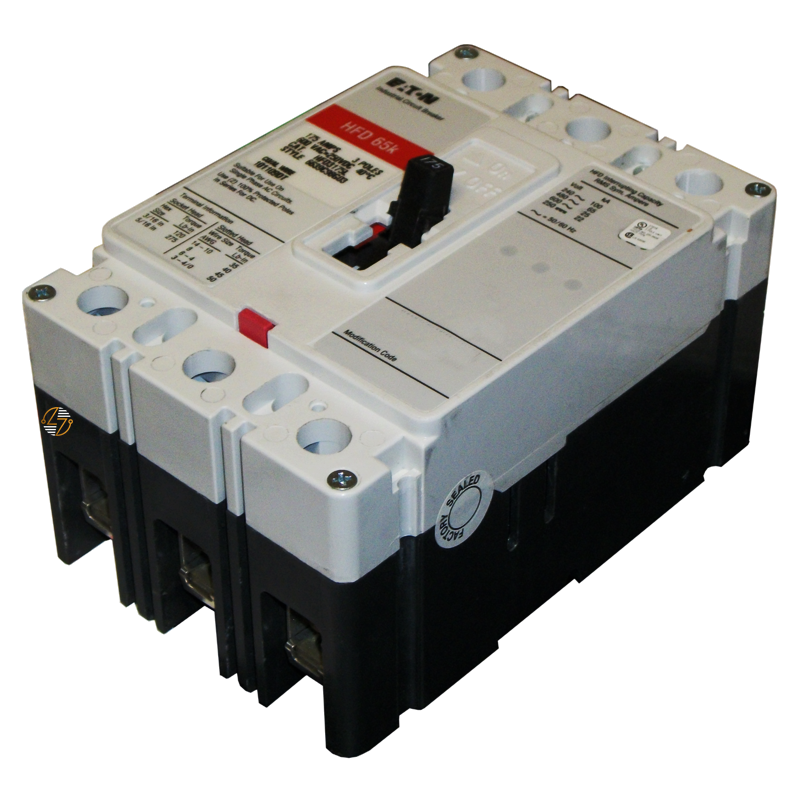

The Eaton HFD3200L is a high-performance circuit breaker, designed to meet the rigorous demands of industrial and commercial applications. As part of Eaton's esteemed Series C line, this F-frame molded case circuit breaker offers robust protection with a 200A current rating, ensuring reliable operation in environments with heavy electrical loads. The breaker features a three-pole configuration, accommodating both line and load terminals, and utilizes a thermal magnetic trip mechanism to provide precise, dependable interruption capabilities.

Key Features and Benefits

• Superior Protection: With a fixed thermal and fixed magnetic trip, the HFD3200L offers consistent, reliable protection against overloads and short circuits, minimizing downtime and maintenance costs.
• High Interrupting Capacity: Rated at 100 kAIC at 240 Vac and 65 kAIC at 480 Vac, this breaker is engineered to handle high fault currents, ensuring maximum safety and reliability in critical applications.
• Compact Design: Measuring just 3.38 inches in depth, 4.13 inches in height, and 4.13 inches in width, and weighing only 4 lbs, it is ideal for installations where space is at a premium without sacrificing performance.
• Easy Installation: The breaker comes with line and load terminals, simplifying installation and integration into existing systems, reducing setup time and labor costs.

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupting Capacity: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Trip Type: Fixed thermal, fixed magnetic
• Frequency Rating: 50 to 60 Hz
• Number of Poles: Three-pole
• Frame Type: F-Frame

Material Compliance and Certifications

• The Eaton HFD3200L circuit breaker is UL Listed, ensuring it meets rigorous safety and performance standards. It complies with key industry standards and is backed by Eaton's comprehensive quality assurance program, which includes a one-year warranty from the date of installation or eighteen months from the date of shipment.

Suitability

• This circuit breaker is ideal for use in a wide range of applications, including commercial buildings, manufacturing facilities, and data centers, where high fault current levels and stringent safety requirements are present. Its robust design and high interrupting capacity make it suitable for use in critical power distribution systems, providing reliable protection and peace of mind for facility managers and electrical contractors.
