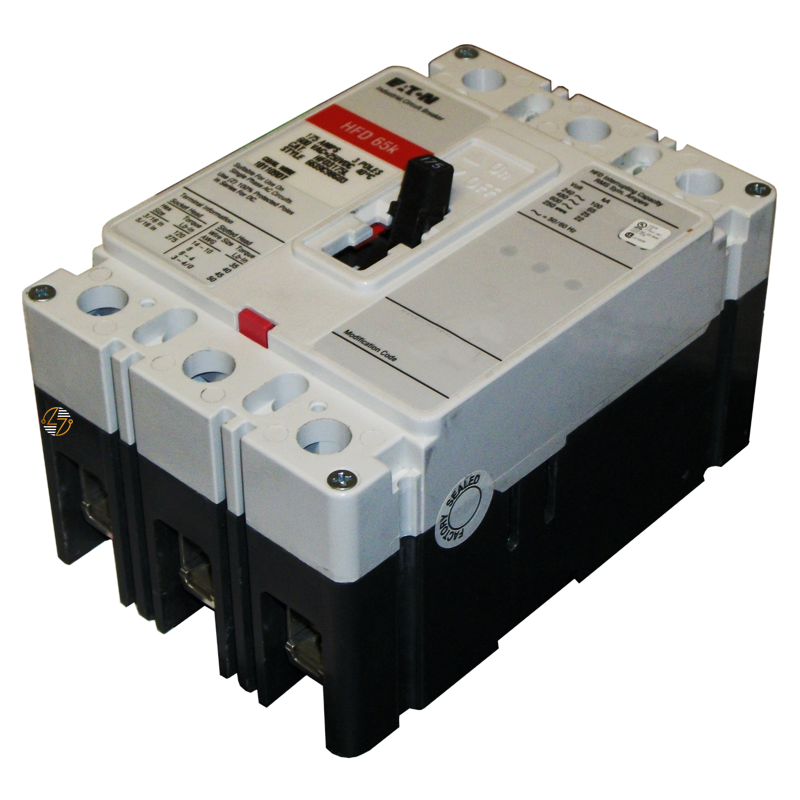

HFD3200 - 200Amp Circuit Breaker

HFD3200 - 200Amp Circuit Breaker

When you’re replacing a circuit breaker in existing equipment, getting the details right matters. The Eaton HFD3200 is a 200 Amp, three-pole molded case circuit breaker from Eaton’s Series C HFD line, built around the F frame. It is rated for 600 VAC and 250 VDC, operates at 50–60 Hz, and uses a T186 fixed thermal, fixed magnetic trip.

Key Features and Benefits

• 200 Amp, three-pole configuration for equipment designed around these ratings.
• Part of the Eaton Series C HFD family with an F-frame design.
• Rated for 600 VAC and 250 VDC.
• T186 fixed thermal, fixed magnetic trip configuration.
• Designed for 50–60 Hz electrical systems.
• Supplied as a complete molded case circuit breaker.
• Includes load-side terminals.
• Compact dimensions help when checking physical fit in compatible equipment.
• UL Listed for applications where its certification and electrical specifications meet system requirements.

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: HFD3200

• UPC: 786679015438

• Product Type: Molded Case Circuit Breaker

• Series: Series C

• Breaker Type: HFD

• Frame: F

• Frame Type: Complete Breaker

• Amperage Rating: 200 A

• Number of Poles: 3

• Voltage Rating: 600 VAC / 250 VDC

• Frequency Rating: 50–60 Hz

• Trip Type: T186

• Trip Configuration: Fixed Thermal, Fixed Magnetic

• Interrupt Rating at 240 VAC: 100 kAIC

• Interrupt Rating at 480 VAC: 65 kAIC

• Terminals: Load Side

• Height: 4.13 in

• Width: 4.13 in

• Depth: 3.38 in

• Weight: 4.4 lb


Material Compliance and Certifications

The Eaton HFD3200 is UL Listed, an important point when confirming whether a replacement breaker meets the requirements of a particular installation. Circuit breakers should never be selected on amperage alone. Before replacing an existing unit, check the catalog number along with the frame, number of poles, voltage, trip configuration, interrupting rating, frequency, and terminal arrangement. Matching those details helps ensure the breaker is appropriate for the equipment in which it will be installed.

Where It Works Best

The HFD3200 200 Amp circuit breaker makes the most sense in commercial and industrial electrical equipment designed to accept an Eaton Series C HFD F-frame, three-pole breaker with matching electrical characteristics. It can also be a practical choice when maintaining existing or legacy equipment where the original breaker specifications need to be preserved.
