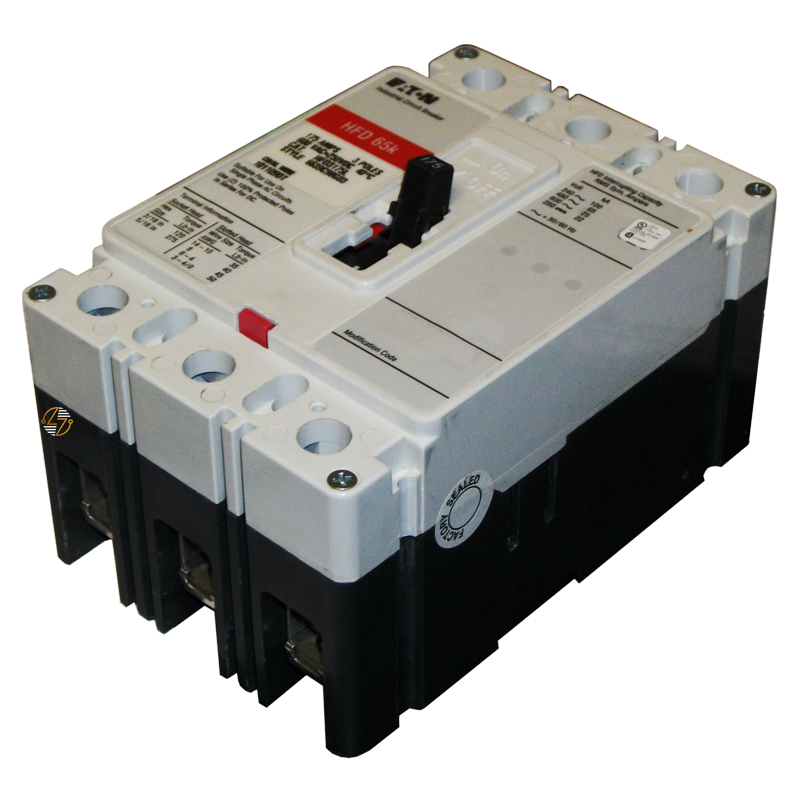

HFD3175L 175A Circuit Breaker

HFD3175L 175A Circuit Breaker

The Eaton HFD3175L is a robust and reliable Series C, F-frame molded case circuit breaker designed to deliver exceptional protection and performance in various industrial and commercial applications. With a current rating of 175A and a voltage rating of 600 Vac and 250 Vdc, this three-pole breaker ensures efficient and safe power distribution. Its thermal magnetic trip unit provides precise and reliable circuit interruption, safeguarding electrical systems from overloads and short circuits.

Key Features and Benefits

• High Interrupting Capacity: The HFD3175L boasts a remarkable interrupting capacity of 100 kAIC at 240 Vac and 65 kAIC at 480 Vac, making it suitable for demanding environments where high fault currents are present.
• Versatile Applications: Ideal for a wide range of applications, including manufacturing plants, commercial buildings, and electrical distribution systems, this circuit breaker offers versatile protection for both line and load terminals.
• Durable Construction: Built with high-quality materials, the HFD3175L ensures long-lasting performance and reliability, even in harsh operating conditions.
• Compact Design: With dimensions of 3.38 inches in length, 4.13 inches in height, and 4.13 inches in width, this compact circuit breaker fits seamlessly into various panel configurations, optimizing space usage.
• Ease of Installation: Featuring line and load terminals, the HFD3175L simplifies the installation process, reducing downtime and labor costs.

Technical Specifications

• Amperage Rating: 175A
• Voltage Rating: 600 Vac, 250 Vdc
• Trip Type: Fixed thermal, fixed magnetic
• Interrupting Capacity: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Number of Poles: Three-pole
• Frame Type: F-frame
• Series: Series C
• Dimensions: 3.38 in (length) x 4.13 in (height) x 4.13 in (width)
• Weight: 5 lbs

Material Compliance and Certifications

• Certifications: UL Listed, ensuring compliance with recognized safety standards and providing assurance of reliable performance.
• Warranty: Covered under Eaton's Selling Policy 25-000, offering a one-year warranty from the date of installation or eighteen months from the date of shipment, whichever comes first.

Suitability

• The Eaton HFD3175L is engineered for use in electrical distribution systems where reliable circuit protection is crucial. Its high interrupting capacity makes it particularly suitable for environments with potential high fault currents, such as industrial plants and large commercial facilities. Additionally, its compact design and ease of installation make it an excellent choice for new installations and retrofit projects alike.

Equip your electrical systems with the Eaton HFD3175L circuit breaker for unmatched protection, durability, and performance. Trust in Eaton's legacy of quality and innovation to keep your operations running smoothly and safely.
