HFD3150 - 150Amp Circuit Breaker
HFD3150 - 150Amp Circuit Breaker
Couldn't load pickup availability
HFD3150 - 150Amp Circuit Breaker

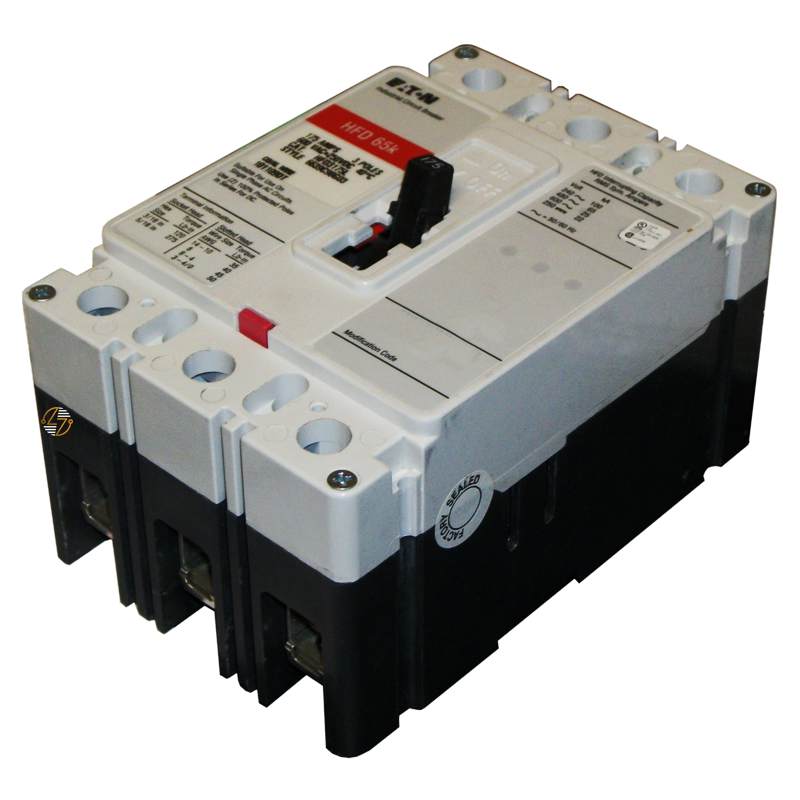

The Eaton HFD3150 is a 150 Amp, three-pole Series C molded case circuit breaker used in commercial and industrial electrical equipment. It’s a common replacement choice in systems that already use HFD breakers, particularly when the job calls for keeping your existing breaker style, ratings, and connection setup intact.
Key Features and Benefits
- 150 Amp, three-pole molded case circuit breaker
- Eaton Series C HFD design
- 600VAC and 250VDC voltage ratings
- T186 thermal-magnetic trip
- Protects against overload and short-circuit conditions
- Complete breaker with load-side terminals
- Practical replacement for compatible existing HFD installations
- UL Listed
Technical Specifications
-
Catalog Number: HFD3150
-
Manufacturer: Eaton
-
Product Type: Molded case circuit breaker
-
Series: Series C
-
Breaker Type: HFD
-
Frame Type: Complete breaker
-
Amperage Rating: 150 Amps
-
Poles: 3
-
Voltage Rating: 600VAC / 250VDC
-
Trip Type: T186
-
Trip Configuration: Thermal-magnetic
-
Interrupt Rating at 240VAC: 100 kAIC
-
Interrupt Rating at 480VAC: 65 kAIC
-
Terminals: Load side
-
UPC: 786679175910
-
Height: 4.13 in
-
Width: 4.13 in
-
Depth: 3.38 in
-
Weight: 4.25 lb
Material Compliance and Certifications
The HFD3150 is UL Listed and belongs to Eaton’s Series C molded case circuit breaker family. It is intended for compatible electrical equipment where its ratings and breaker configuration meet the requirements of the installation. Installation and service should be performed by qualified electrical personnel and follow applicable electrical codes and safety requirements.
Where It Works Best
- Existing Eaton Series C HFD installations
- Replacement of an HFD3150 breaker
- 150 Amp three-pole circuits
- Compatible three-phase power systems
- Commercial and industrial electrical equipment
- Equipment designed for HFD molded case breakers
- Applications requiring load-side terminals
- Systems operating within the 600VAC or 250VDC ratings
