HFD3125L - 125Amp Circuit Breaker

HFD3125L - 125Amp Circuit Breaker

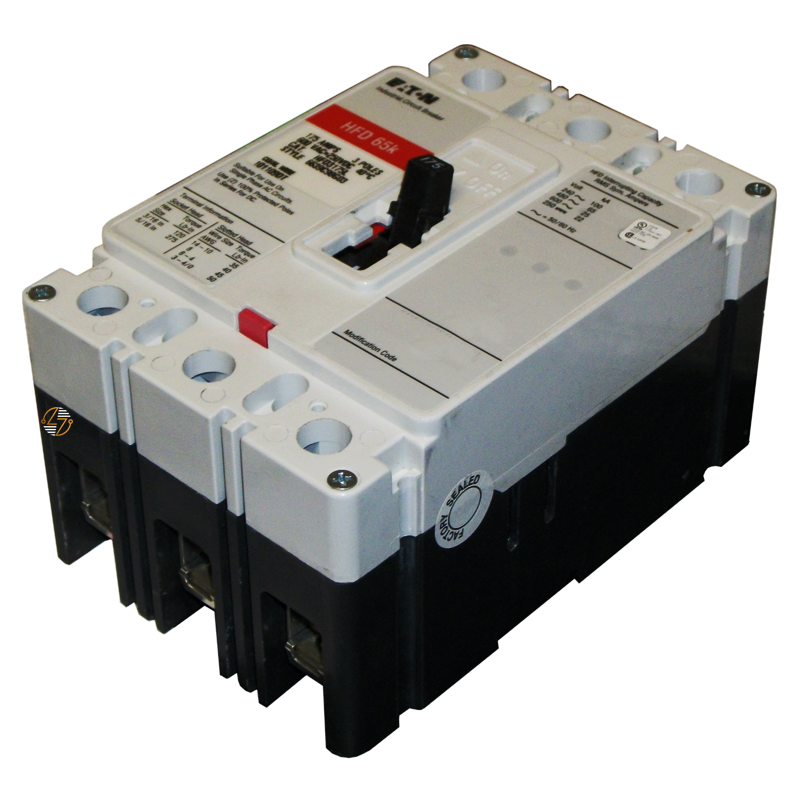

The Eaton HFD3125L is a 125 Amp, three-pole Series C molded case circuit breaker used in electrical systems built around the HFD F-frame platform. It’s most often selected for replacement and maintenance work where your existing equipment already calls for this breaker style, rating, and terminal configuration. Rather than changing the system layout, the HFD3125L is intended to maintain the original form, fit, and electrical characteristics when all specifications match.

Key Features and Benefits

• 125 Amp, three-pole molded case circuit breaker
• Eaton Series C HFD breaker family
• F-frame complete breaker design
• Rated for 600VAC and 250VDC
• T186 thermal-magnetic trip unit
• Protection for overload and short-circuit conditions
• 50/60 Hz frequency rating
• Line and load terminal configuration
• Well suited for replacement in compatible HFD systems
• UL Listed

Technical Specifications

• Catalog Number: HFD3125L

• Manufacturer: Eaton

• Product Type: Molded case circuit breaker

• Series: Series C

• Circuit Breaker Type: HFD

• Frame: F

• Frame Type: Complete breaker

• Amperage Rating: 125 Amps

• Number of Poles: 3

• Voltage Rating: 600VAC / 250VDC

• Frequency Rating: 50/60 Hz

• Trip Type: T186

• Trip Configuration: Thermal-magnetic

• Interrupt Rating: 100 kAIC at 240VAC / 65 kAIC at 480VAC

• Terminals: Line and load

• UPC: 786679175200

• Height: 4.9 in

• Width: 5 in

• Depth: 7.4 in

• Weight: 4.3 lb


Material Compliance and Certifications

The Eaton HFD3125L is UL Listed and is part of Eaton’s Series C molded case circuit breaker family. It is intended for electrical systems that require a compatible HFD F-frame breaker with the same electrical ratings and physical configuration. Installation and servicing should be handled by qualified electrical personnel in accordance with applicable electrical codes, equipment requirements, and established safety practices.

Where It Works Best

• Existing Eaton Series C HFD electrical equipment
• Replacement of an existing HFD3125L breaker
• 125 Amp three-pole circuit protection
• Three-phase electrical distribution systems
• Commercial and industrial power equipment
• Systems designed around F-frame molded case breakers
• Installations requiring line and load terminals
• Equipment operating within 600VAC or 250VDC ratings
