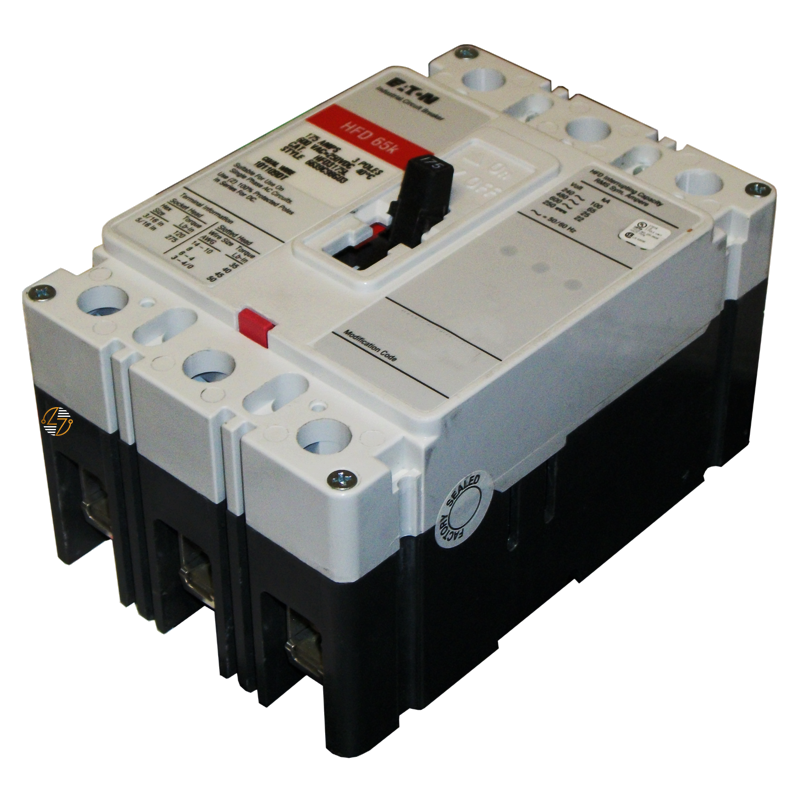

HFD3125 - 125Amp Circuit Breaker
HFD3125 - 125Amp Circuit Breaker
Couldn't load pickup availability
HFD3125 - 125Amp Circuit Breaker
The Eaton HFD3125 is a 125 Amp, three-pole Series C molded case circuit breaker used in electrical systems built around the HFD breaker family. Most often, you’ll see it used for replacement work where the existing equipment already calls for the same breaker style and electrical ratings. Rather than changing the original setup, the HFD3125 lets you maintain the same basic form, fit, and function when the specifications match.
Key Features and Benefits
- 125 Amp, three-pole molded case circuit breaker
- Eaton Series C HFD breaker design
- Rated for 600VAC and 250VDC
- T186 thermal-magnetic trip
- Handles overload and short-circuit conditions
- Complete breaker with load-side terminals
- Suitable for replacement in compatible HFD systems
- UL Listed
- Built for dependable long-term service when correctly applied
Technical Specifications
-
Catalog Number: HFD3125
-
Manufacturer: Eaton
-
Product Type: Molded case circuit breaker
-
Series: Series C
-
Circuit Breaker Type: HFD
-
Frame Type: Complete breaker
-
Amperage Rating: 125 Amps
-
Poles: 3
-
Voltage Rating: 600VAC / 250VDC
-
Trip Type: T186
-
Trip Configuration: Thermal-magnetic
-
Interrupt Rating: 100 kAIC at 240VAC / 65 kAIC at 480VAC
-
Terminals: Load side
-
UPC: 786679175903
-
Height: 4.13 in
-
Width: 4.13 in
-
Depth: 3.38 in
-
Weight: 4.25 lb
Material Compliance and Certifications
The Eaton HFD3125 is UL Listed and is designed for use in electrical systems that call for a compatible Series C HFD molded case breaker. Installation and servicing should be performed by qualified electrical personnel in accordance with applicable electrical codes and safety practices.
Where It Works Best
- Existing Eaton Series C HFD installations
- Replacement of an HFD3125 breaker
- 125 Amp three-pole circuits
- Three-phase electrical distribution systems
- Commercial and industrial electrical equipment
- Systems requiring load-side terminals
- Equipment operating within 600VAC or 250VDC ratings
- Maintenance work where the original breaker configuration needs to stay the same
