HFD3090 - 90Amp Circuit Breaker

HFD3090 - 90Amp Circuit Breaker

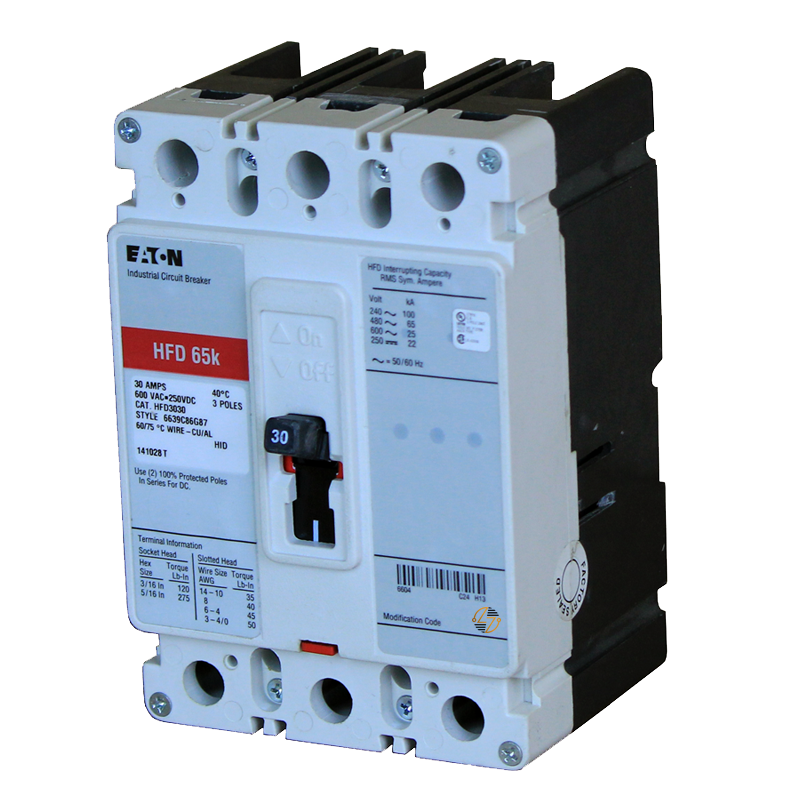

When you're replacing a circuit breaker in existing equipment, the details matter. The Eaton HFD3090 is a 90-amp, three-pole Series C molded case circuit breaker built around Eaton's HFD F-frame configuration. It is rated for 600 VAC and 250 VDC, operates at 50/60 Hz, and uses the T186 trip type. For fault-current requirements, the HFD3090 carries an interrupt rating of 100 kAIC at 240 VAC and 65 kAIC at 480 VAC. It comes as a complete breaker with load-side terminals and is UL Listed.

Key Features and Benefits

• 90-amp rating for applications specifically designed around a 90A breaker.
• Three-pole configuration for compatible three-pole electrical systems.
• Part of the Eaton Series C HFD family, with an F-frame design for proper form and fit in compatible equipment.
• Rated for 600 VAC and 250 VDC, giving you clearly defined AC and DC application limits.
• 100 kAIC at 240 VAC and 65 kAIC at 480 VAC interrupt ratings.
• T186 trip type, an important detail to check when matching an existing breaker.
• Designed for 50/60 Hz systems.
• Supplied as a complete molded case circuit breaker with load-side terminals.
• UL Listed for applications requiring this certification.

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: HFD3090

• UPC: 786679175880

• Product Type: Molded case circuit breaker

• Series: Series C

• Breaker Type: HFD

• Frame: F

• Frame Type: Complete breaker

• Amperage Rating: 90 A

• Number of Poles: Three-pole

• Voltage Rating: 600 VAC, 250 VDC

• Trip Type: T186

• Frequency Rating: 50/60 Hz

• Interrupt Rating at 240 VAC: 100 kAIC

• Interrupt Rating at 480 VAC: 65 kAIC

• Terminals: Load side

• Height: 6 in.

• Width: 4.13 in.

• Length/Depth: 3.38 in.

• Weight: 4.3 lb


Material Compliance and Certifications

The HFD3090 is UL Listed, making it suitable for compatible applications where UL listing is required. No additional material-compliance certifications were identified in the supplied manufacturer specifications, so project-specific compliance requirements should be confirmed before installation.

Where It Works Best

The Eaton HFD3090 makes the most sense in commercial and industrial electrical equipment already designed to accept a Series C HFD F-frame breaker with matching specifications. It's particularly useful in maintenance and replacement situations where keeping the original form, fit, and function is important.
