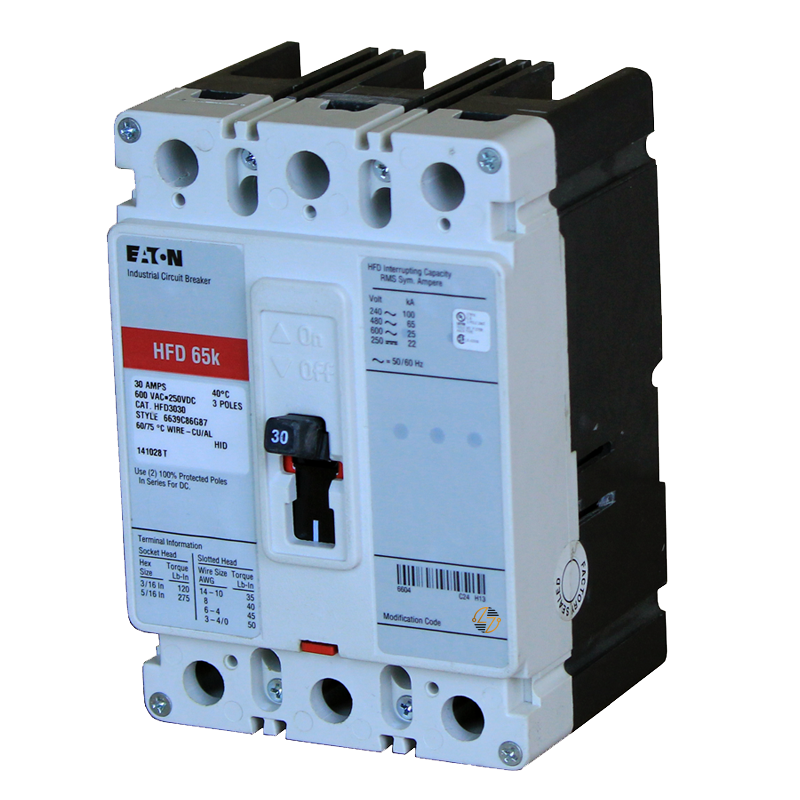

HFD3070 - 70Amp Circuit Breaker

HFD3070 - 70Amp Circuit Breaker

When your existing electrical system calls for an Eaton HFD3070, matching the full breaker specification matters. This 70-amp, three-pole molded case circuit breaker is part of Eaton’s Series C HFD family and uses an F-frame complete-breaker configuration. It is rated for 600 VAC and 250 VDC, operates at 50/60 Hz, and uses a T186 trip type. The HFD3070 carries interrupt ratings of 100 kAIC at 240 VAC and 65 kAIC at 480 VAC, while the specified terminal arrangement is load side. If the existing application requires this combination of Series C, HFD type, F frame, amperage, poles, voltage, trip type, interrupt ratings, and terminal configuration, the HFD3070 provides the intended form, fit, and function. It’s built to last when correctly installed and operated within its published ratings.

Key Features and Benefits

• 70A, three-pole configuration
• Provides the breaker family and configuration needed for compatible existing installations.
• Gives maintenance professionals a clear frame reference when checking physical and functional compatibility.
• 600 VAC / 250 VDC rating
• T186 trip type
• Load-side terminals
• 50/60 Hz operation
• UL Listed

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: HFD3070

• UPC: 786679175873

• Product Type: Molded case circuit breaker

• Series: Series C

• Circuit Breaker Type: HFD

• Frame: F

• Frame Type: Complete breaker

• Amperage Rating: 70 A

• Number of Poles: Three-pole

• Voltage Rating: 600 VAC, 250 VDC

• Trip Type: T186

• Frequency Rating: 50/60 Hz

• Interrupt Rating at 240 VAC: 100 kAIC

• Interrupt Rating at 480 VAC: 65 kAIC

• Terminals: Load side

• Height: 6 in.

• Width: 4.13 in.

• Length/Depth: 3.38 in.

• Weight: 4.3 lb


Material Compliance and Certifications

The Eaton HFD3070 is UL Listed, giving contractors and maintenance personnel a clear certification point to check against the requirements of the equipment or installation. No additional material-compliance certifications are identified in the supplied manufacturer specifications. If a project has specific environmental, material, or regulatory requirements beyond the stated UL listing, those requirements should be confirmed separately.
