HFD3030 30A Circuit Breaker

HFD3030 30A Circuit Breaker

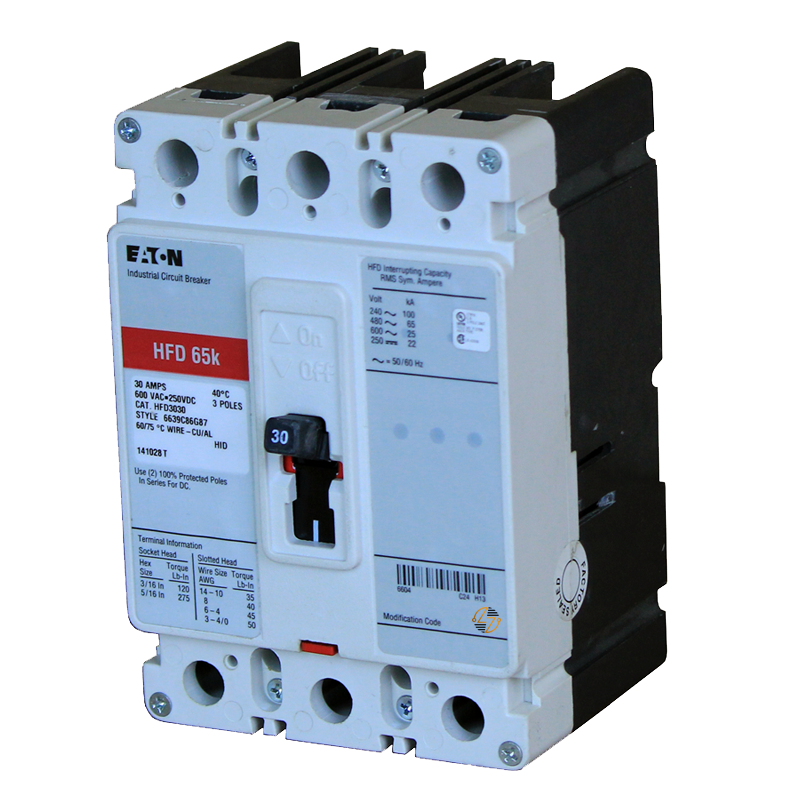

Introducing the Eaton HFD3030 Series C Molded Case Circuit Breaker, a robust and reliable solution engineered for optimal performance and safety in electrical systems. This three-pole circuit breaker is part of Eaton’s renowned Series C, designed to provide exceptional circuit protection and operational reliability for both residential and commercial applications. The HFD3030 boasts a fixed thermal and magnetic trip mechanism, ensuring precise and rapid response to overloads and short circuits.

Key Features and Benefits:

• Fixed Thermal and Magnetic Trip Mechanism: Offers consistent protection by quickly responding to electrical faults, minimizing downtime and enhancing safety.
• High Interrupting Capacity: Capable of handling up to 100 kAIC at 240 Vac and 65 kAIC at 480 Vac, ensuring robust performance in high fault current conditions.

Technical Specifications:

• Amperage Rating: 30A
• Voltage Rating: 600 Vac, 250 Vdc
• Trip Type: Fixed thermal, fixed magnetic
• Frame Type: F-frame
• Frequency Rating: 50/60 Hz
• Interrupting Capacity: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Number of Poles: 3
• Weight: 4.3 lbs

Material Compliance and Certifications:

• Certifications: UL Listed, ensuring adherence to stringent safety and performance standards.

Suitability:

• The Eaton HFD3030 circuit breaker is perfectly suited for a wide range of applications, from residential electrical systems to commercial and industrial power distribution. Its robust design and high interrupting capacity make it ideal for protecting circuits in settings that require reliable and efficient operation under demanding conditions. Whether for new installations or upgrades, the HFD3030 delivers unmatched safety, performance, and peace of mind.
