HFD1020 20A Circuit Breaker

HFD1020 20A Circuit Breaker

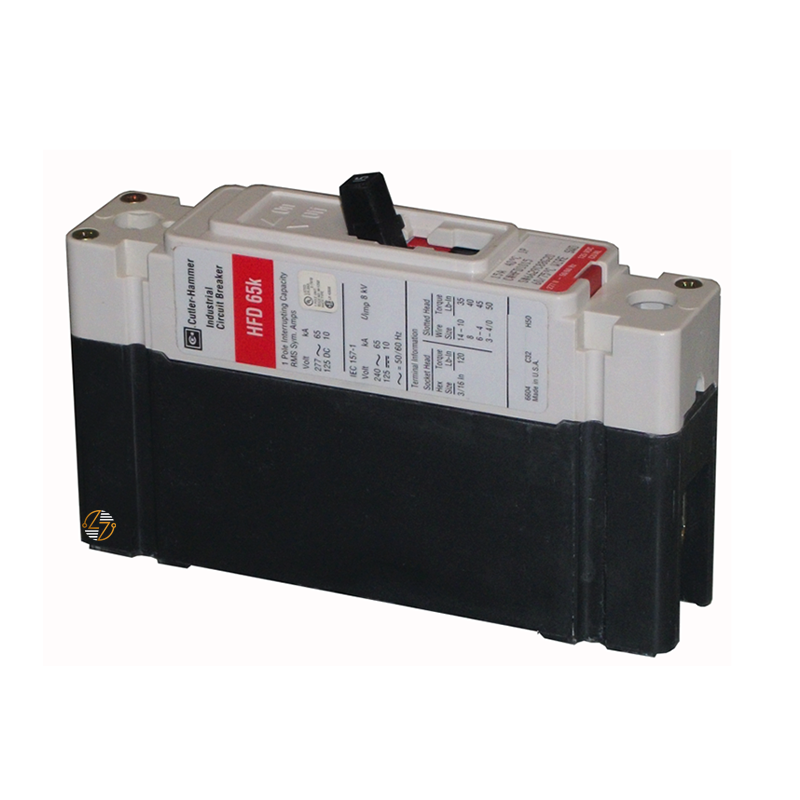

The Eaton HFD1020 Series C F-Frame Molded Case Circuit Breaker is designed to provide reliable and efficient protection for electrical systems in residential, commercial, and industrial applications. This single-pole breaker, with a fixed thermal and magnetic trip, offers a robust solution for managing electrical loads up to 20A. With its superior design and compliance with UL standards, the HFD1020 ensures safety and performance in a variety of environments.

Key Features and Benefits:

• Fixed Thermal and Magnetic Trip: The HFD1020 features a fixed thermal and magnetic trip mechanism, ensuring precise and consistent protection against overloads and short circuits. This design minimizes the risk of electrical faults, enhancing the safety and reliability of your electrical system.
• High Interrupting Capacity: With a 100 kAIC at 240 Vac and 65 kAIC at 480 Vac, this circuit breaker can handle high fault currents, making it suitable for demanding applications. This high interrupting capacity ensures the breaker can safely disconnect high-energy faults, protecting both the system and connected equipment.

Technical Specifications:

• Amperage Rating: 20A
• Voltage Rating: 347 Vac, 125 Vdc
• Interrupting Capacity: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Frequency Rating: 50/60 Hz
• Number of Poles: Single-pole
• Frame Type: F-Frame
• Trip Type: Fixed thermal, fixed magnetic
• Load Side Terminals: Ensures secure and stable connections for reliable operation.

Material Compliance and Certifications:

• Compliance: The Eaton HFD1020 circuit breaker is UL listed, ensuring it meets stringent safety and performance standards. Eaton's commitment to quality and compliance guarantees that each breaker is manufactured to the highest standards, providing peace of mind for installers and end-users alike.

Suitability:

• Ideal for use in a wide range of applications, the HFD1020 is suitable for residential, commercial, and industrial environments. Its high interrupting capacity makes it particularly well-suited for systems requiring robust protection against high fault currents. Whether used in new installations or as a replacement for existing breakers, the HFD1020 delivers reliable performance and safety.

Equip your electrical system with the Eaton HFD1020 Series C F-Frame Molded Case Circuit Breaker to ensure optimal protection and performance.
