WESTINGHOUSE

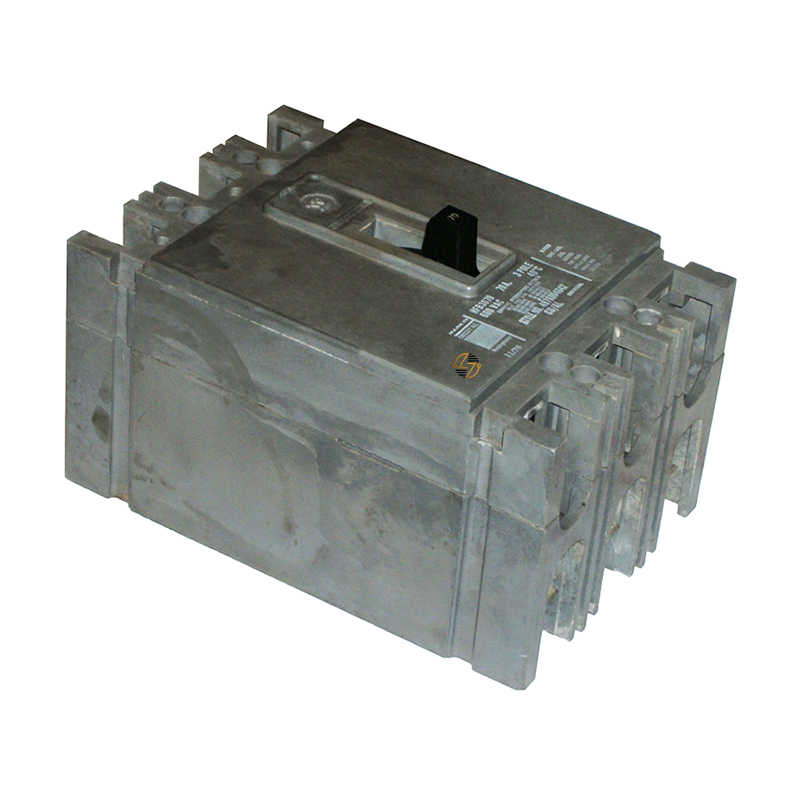

HFB3125L - 125Amp Circuit Breaker
HFB3125L - 125Amp Circuit Breaker
Couldn't load pickup availability
HFB3125L - 125Amp Circuit Breaker
The HFB3125L is a 125 Amp, 3-pole thermal-magnetic molded case circuit breaker designed for use in compatible HFB-series electrical distribution systems. Engineered with a non-interchangeable trip unit, this breaker provides dependable overload and short-circuit protection while preserving your original factory-set trip characteristics required for compatible equipment.
Key Features and Benefits
- 125 Amp current rating for branch circuit protection
- Three-pole design for compatible three-phase electrical systems
- Thermal-magnetic trip mechanism helps protect against overloads and short circuits
- Non-interchangeable trip unit maintains factory-set trip characteristics
- Rated for operation in 40°C ambient temperatures
- Includes line-side and load-side terminals for compatible electrical connections
- Designed as a form, fit, and functional replacement for compatible HFB-series circuit breakers
Technical Specifications
-
Part Number: HFB3125L
-
Type: HFB
-
Product Type: Thermal-Magnetic Molded Case Circuit Breaker
-
Amperage: 125 Amps
-
Poles: 3
-
Voltage / A.I.C. Rating:
- 14kA @ 600VAC
- 25kA @ 480VAC
- 65kA @ 240VAC
-
Trip Unit: Non-Interchangeable
-
Ambient Temperature Rating: 40°C
-
Terminal Configuration: Includes Line-Side and Load-Side Terminals
-
Dimensions:
- Width: 4.13"
- Height: 6.00"
- Depth: 3.38"
-
Approximate Shipping Weight: 6.00 lbs.
Material Compliance and Certifications
The HFB3125L is intended for installation in compatible HFB-series electrical distribution equipment. Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation instructions.
Where It Works Best
- Commercial buildings
- Industrial facilities
- Manufacturing plants
- Three-phase electrical distribution systems
- Panelboards
- Switchboards
- Motor and equipment branch circuits
- Maintenance of compatible HFB-series electrical distribution equipment
