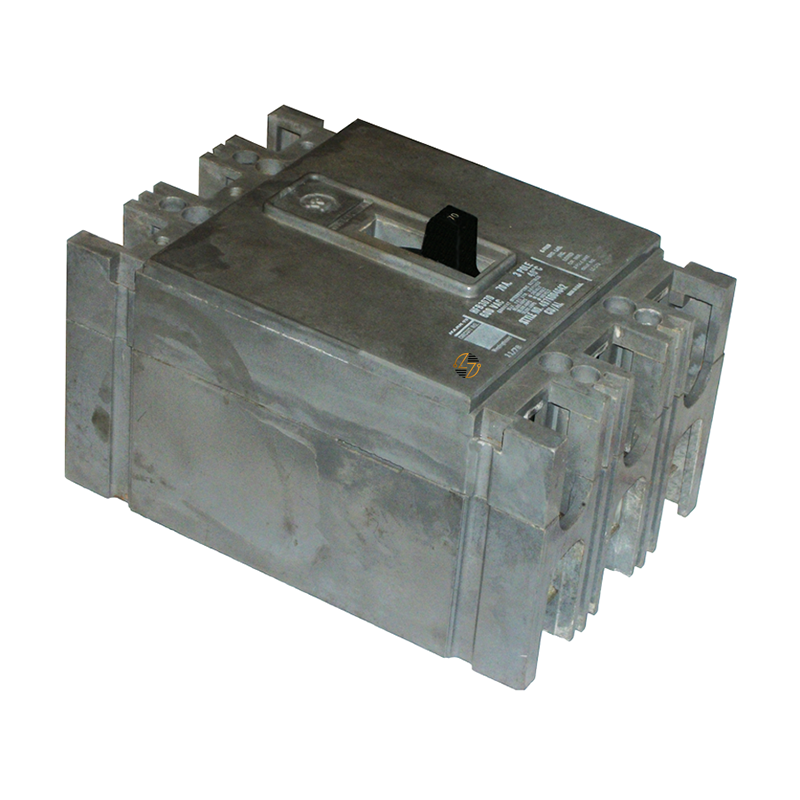

HFB3070L - 70Amp Circuit Breaker

HFB3070L - 70Amp Circuit Breaker

The HFB3070L is a 70 Amp, 3-pole thermal-magnetic molded case circuit breaker designed for use in compatible HFB-series electrical distribution systems. Equipped with a non-interchangeable trip unit, this breaker provides dependable protection against overloads and short circuits while maintaining the factory-configured trip characteristics required for compatible equipment. When you're replacing an existing breaker, matching the original unit's amperage, voltage rating, interrupting capacity, pole configuration, trip characteristics, terminal style, and physical dimensions is essential for proper form, fit, and function.

Key Features and Benefits

• 70 Amp current rating for branch circuit protection
• Three-pole configuration for compatible three-phase electrical systems
• Thermal-magnetic trip mechanism helps protect against overloads and short circuits
• Non-interchangeable trip unit maintains factory-set trip characteristics
• Rated for operation in 40°C ambient temperatures
• Includes line and load-side terminals for compatible electrical connections


Technical Specifications

• Part Number: HFB3070L

• Type: HFB

• Product Type: Thermal-Magnetic Molded Case Circuit Breaker

• Amperage: 70 Amps

• Poles: 3

• Voltage / A.I.C. Rating:
  • 14kA @ 600VAC
  • 25kA @ 480VAC
  • 65kA @ 240VAC
• Trip Unit: Non-Interchangeable

• Ambient Temperature Rating: 40°C

• Terminal Configuration: Includes Line and Load-Side Terminals

• Dimensions:
  • Width: 4.13"
  • Height: 6.00"
  • Depth: 3.38"
• Approximate Shipping Weight: 6.00 lbs.


Material Compliance and Certifications

The HFB3070L is intended for installation in compatible HFB-series electrical distribution equipment. Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation requirements.

Where It Works Best

• Commercial buildings
• Industrial facilities
• Manufacturing plants
• Three-phase electrical distribution systems
• Panelboards
• Switchboards
• Motor and equipment branch circuits
• Maintenance of compatible HFB-series electrical distribution equipment
