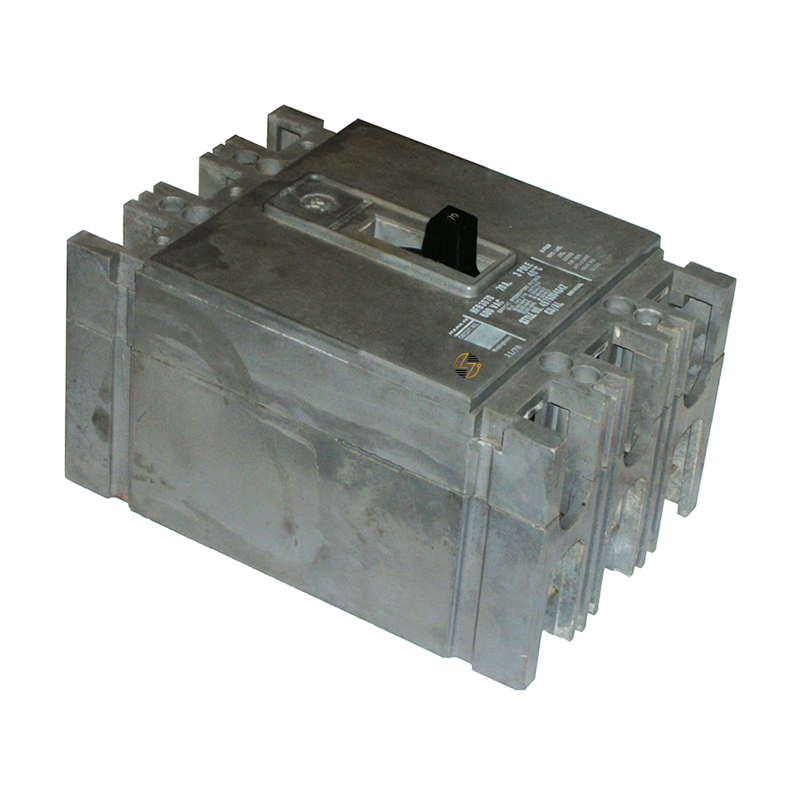

HFB3060 - 60Amp Circuit Breaker

HFB3060 - 60Amp Circuit Breaker

The HFB3060 is a 60 Amp, 3-pole thermal-magnetic molded case circuit breaker designed for use in compatible HFB-series electrical distribution systems. Featuring a non-interchangeable trip unit, this breaker provides dependable protection against overloads and short circuits while maintaining the original factory-set trip characteristics required for compatible installations. When replacing an existing circuit breaker, matching the original amperage, pole configuration, voltage rating, interrupting capacity, trip characteristics, and physical dimensions is essential to ensure proper form, fit, and function.

Key Features and Benefits

• 60 Amp current rating for branch circuit protection
• Three-pole configuration for compatible three-phase electrical systems
• Thermal-magnetic trip mechanism helps protect against overloads and short circuits
• Non-interchangeable trip unit preserves original factory-configured trip characteristics
• Rated for operation in 40°C ambient temperatures
• Includes load-side lugs for compatible electrical connections
• Built to last for dependable service in properly maintained electrical systems


Technical Specifications

• Part Number: HFB3060

• Type: HFB

• Product Type: Thermal-Magnetic Molded Case Circuit Breaker

• Amperage: 60 Amps

• Poles: 3

• Voltage / A.I.C. Rating:
  • 14kA @ 600VAC
  • 25kA @ 480VAC
  • 65kA @ 240VAC
• Trip Unit: Non-Interchangeable

• Ambient Temperature Rating: 40°C

• Terminal Configuration: Includes Load-Side Lugs

• Dimensions:
  • Width: 4.13"
  • Height: 6.00"
  • Depth: 3.38"
• Approximate Shipping Weight: 6.00 lbs.


Material Compliance and Certifications

The HFB3060 is intended for installation in compatible HFB-series electrical distribution equipment. Installation should be completed by a qualified electrician in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation requirements.

Where It Works Best

• Commercial buildings
• Industrial facilities
• Manufacturing plants
• Three-phase electrical distribution systems
• Panelboards
• Switchboards
• Motor and equipment branch circuits
• Maintenance of compatible HFB-series electrical distribution equipment
