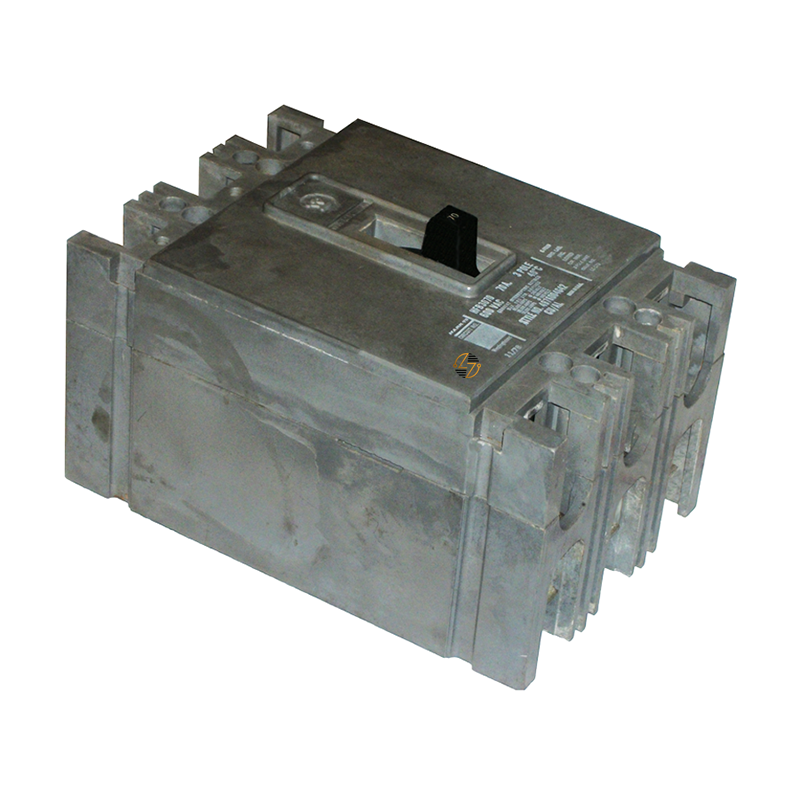

HFB3050L - 50Amp Circuit Breaker

HFB3050L - 50Amp Circuit Breaker

The HFB3050L is a 50 Amp, 3-pole thermal-magnetic molded case circuit breaker designed for use in compatible HFB-series electrical distribution systems. Equipped with a non-interchangeable trip unit, it provides dependable protection against overloads and short circuits while preserving the factory-configured trip characteristics required for compatible installations. When you're maintaining existing electrical systems, matching the original breaker's amperage, pole configuration, voltage rating, interrupting capacity, trip characteristics, and physical dimensions is essential for proper fit and function.

Key Features and Benefits

• 50 Amp current rating for branch circuit protection
• Three-pole configuration for compatible three-phase electrical systems
• Thermal-magnetic trip mechanism helps protect against overloads and short circuits
• Non-interchangeable trip unit maintains original factory-set trip characteristics
• Rated for operation in 40°C ambient temperatures
• Includes line and load-side terminals for compatible electrical connections
• Designed as a form, fit, and functional replacement for compatible HFB-series circuit breakers


Technical Specifications

• Part Number: HFB3050L

• Type: HFB

• Product Type: Thermal-Magnetic Molded Case Circuit Breaker

• Amperage: 50 Amps

• Poles: 3

• Voltage / A.I.C. Rating:
  • 14kA @ 600VAC
  • 25kA @ 480VAC
  • 65kA @ 240VAC
• Trip Unit: Non-Interchangeable

• Ambient Temperature Rating: 40°C

• Terminal Configuration: Line and Load-Side Terminals Included

• Dimensions:
  • Width: 4.13"
  • Height: 6.00"
  • Depth: 3.38"
• Approximate Shipping Weight: 6.00 lbs.


Material Compliance and Certifications

The HFB3050L is intended for installation in compatible HFB-series electrical distribution equipment. Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation instructions.

Where It Works Best

• Commercial buildings
• Industrial facilities
• Manufacturing plants
• Three-phase electrical distribution systems
• Panelboards
• Switchboards
• Motor and equipment branch circuits
• Maintenance of compatible HFB-series electrical distribution equipment
