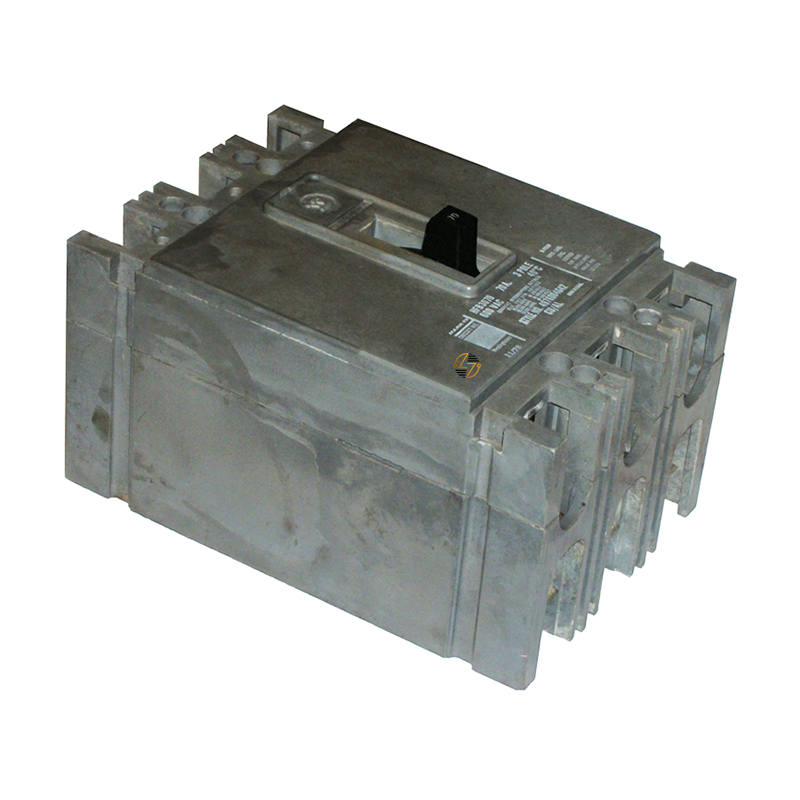

HFB3050 - 50Amp Circuit Breaker

HFB3050 - 50Amp Circuit Breaker

The HFB3050 is a 50 Amp, 3-pole thermal-magnetic molded case circuit breaker designed for use in compatible HFB-series electrical distribution systems. Featuring a non-interchangeable trip unit, it delivers dependable protection against overloads and short circuits while maintaining the original factory-set trip characteristics. When you're servicing or maintaining existing electrical systems, selecting a breaker that matches the original amperage, pole configuration, voltage rating, interrupting capacity, trip characteristics, and physical dimensions is essential for proper fit and function.

Key Features and Benefits

• 50 Amp current rating for branch circuit protection
• Three-pole design for compatible three-phase electrical systems
• Thermal-magnetic trip mechanism protects against overloads and short circuits
• Non-interchangeable trip unit maintains factory-configured trip characteristics
• Rated for operation in 40°C ambient temperatures
• Includes load-side lugs for compatible electrical connections


Technical Specifications

• Part Number: HFB3050

• Type: HFB

• Product Type: Thermal-Magnetic Molded Case Circuit Breaker

• Amperage: 50 Amps

• Poles: 3

• Voltage / A.I.C. Rating:
  • 14kA @ 600VAC
  • 25kA @ 480VAC
  • 65kA @ 240VAC
• Trip Unit: Non-Interchangeable

• Ambient Temperature Rating: 40°C

• Terminal Configuration: Load-Side Lugs Included

• Dimensions:
  • Width: 4.13"
  • Height: 6.00"
  • Depth: 3.38"
• Approximate Shipping Weight: 6.00 lbs.


Material Compliance and Certifications

The HFB3050 is intended for installation in compatible HFB-series electrical distribution equipment. Installation should be completed by a qualified electrician in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation instructions.

Where It Works Best

• Commercial buildings
• Industrial facilities
• Manufacturing plants
• Three-phase electrical distribution systems
• Panelboards
• Switchboards
• Motor and equipment branch circuits
• Maintenance of compatible HFB-series electrical distribution equipment
