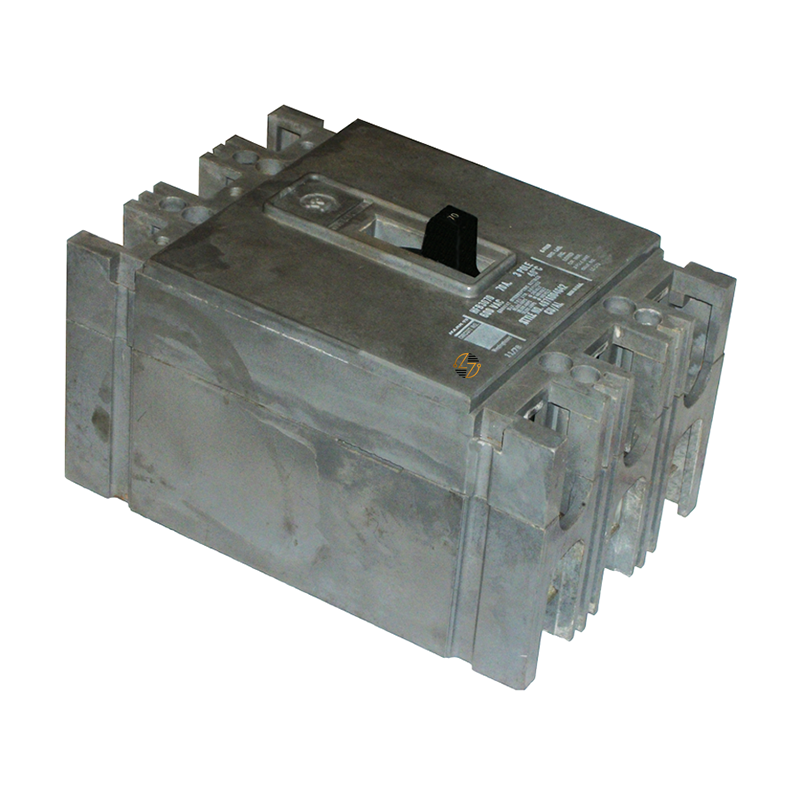

HFB3040 - 40Amp Circuit Breaker

HFB3040 - 40Amp Circuit Breaker

The HFB3040 is a 40 Amp, 3-pole thermal-magnetic molded case circuit breaker designed for use in compatible HFB-series electrical distribution systems. Featuring a non-interchangeable trip unit, it provides dependable protection against overloads and short circuits while preserving the factory-configured trip characteristics required for the original equipment. When maintaining or servicing existing electrical systems, matching the original breaker's amperage, voltage, interrupting capacity, pole configuration, and physical dimensions is essential for proper fit and function.

Key Features and Benefits

• 40 Amp current rating for branch circuit protection
• Three-pole design for compatible three-phase electrical systems
• Thermal-magnetic trip mechanism responds to overloads and short circuits
• Non-interchangeable trip unit maintains factory-set trip characteristics
• Rated for operation in 40°C ambient temperatures
• Includes load-side lugs for compatible electrical connections
• Designed as a form, fit, and functional replacement for compatible HFB-series circuit breakers


Technical Specifications

• Part Number: HFB3040

• Type: HFB

• Product Type: Thermal-Magnetic Molded Case Circuit Breaker

• Amperage: 40 Amps

• Poles: 3

• Voltage / A.I.C. Rating:
  • 14kA @ 600VAC
  • 25kA @ 480VAC
  • 65kA @ 240VAC
• Trip Unit: Non-Interchangeable

• Ambient Temperature Rating: 40°C

• Included Connections: Load-Side Lugs

• Dimensions:
  • Width: 4.13"
  • Height: 6.00"
  • Depth: 3.38"
• Approximate Shipping Weight: 6.00 lbs.


Material Compliance and Certifications

The HFB3040 is intended for installation in compatible HFB-series electrical distribution equipment. Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation instructions.

Where It Works Best

• Commercial buildings
• Industrial facilities
• Manufacturing plants
• Three-phase electrical distribution systems
• Panelboards
• Switchboards
• Motor and equipment branch circuits
• Maintenance of compatible HFB-series electrical distribution equipment
