WESTINGHOUSE
HFB3030L - 30Amp Circuit Breaker
HFB3030L - 30Amp Circuit Breaker
Couldn't load pickup availability
HFB3030L - 30Amp Circuit Breaker

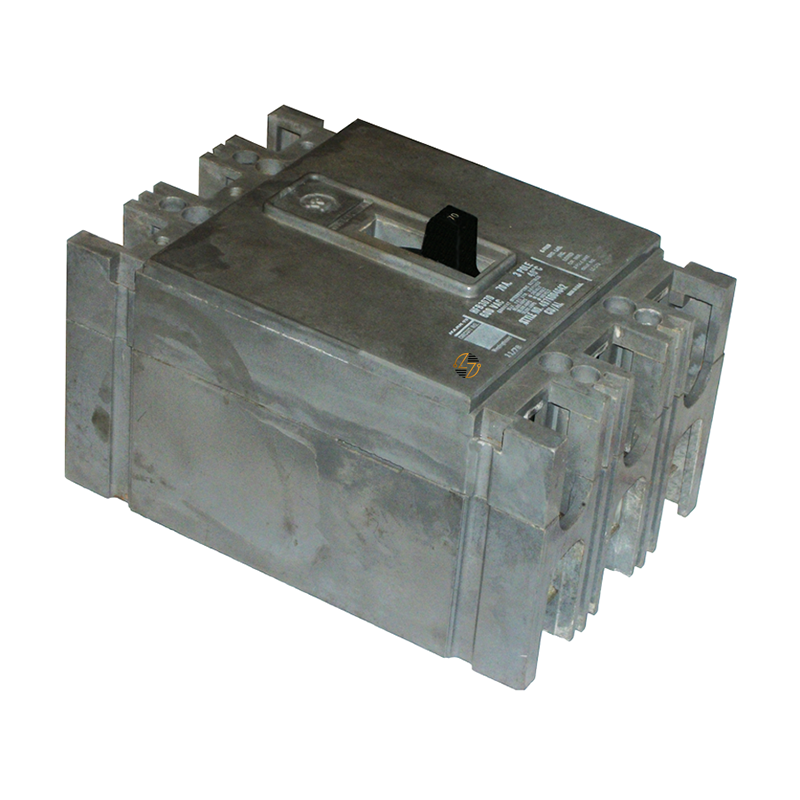

The HFB3030L is a 30 Amp, 3-pole thermal-magnetic molded case circuit breaker designed for use in compatible HFB-series electrical distribution systems. Equipped with a non-interchangeable trip unit, it provides dependable protection against overloads and short circuits while maintaining the original factory-set trip characteristics. When you're servicing existing electrical systems, choosing a breaker that matches the original amperage, voltage rating, interrupting capacity, and physical dimensions is essential.
Key Features and Benefits
- 30 Amp current rating for branch circuit protection
- Three-pole design for compatible three-phase electrical systems
- Thermal-magnetic trip mechanism protects against overloads and short circuits
- Non-interchangeable trip unit maintains factory-configured trip settings
- Rated for operation in 40°C ambient temperatures
- Includes line and load-side terminals for compatible electrical connections
Technical Specifications
-
Part Number: HFB3030L
-
Type: HFB
-
Product Type: Thermal-Magnetic Molded Case Circuit Breaker
-
Amperage: 30 Amps
-
Poles: 3
-
Voltage / A.I.C. Rating:
- 14kA @ 600VAC
- 25kA @ 480VAC
- 65kA @ 240VAC
-
Trip Unit: Non-Interchangeable
-
Ambient Temperature Rating: 40°C
-
Included Connections: Line and Load-Side Terminals
-
Dimensions:
- Width: 4.13"
- Height: 6.00"
- Depth: 3.38"
-
Approximate Shipping Weight: 6.00 lbs.
Material Compliance and Certifications
The HFB3030L is intended for installation in compatible HFB-series electrical distribution equipment. Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation instructions.
Where It Works Best
- Commercial buildings
- Industrial facilities
- Manufacturing plants
- Three-phase electrical distribution systems
- Panelboards
- Switchboards
- Motor and equipment branch circuits
- Maintenance of compatible HFB-series electrical distribution equipment
