WESTINGHOUSE

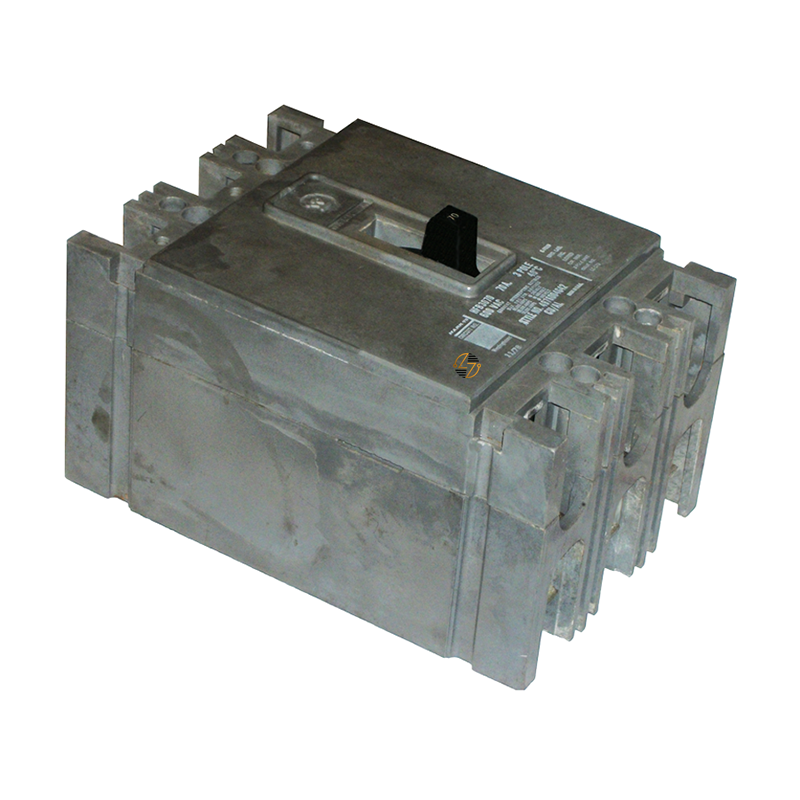

HFB3020 - 20Amp Circuit Breaker
HFB3020 - 20Amp Circuit Breaker
Couldn't load pickup availability
HFB3020 - 20Amp Circuit Breaker
The HFB3020 is a 20 Amp, 3-pole thermal-magnetic molded case circuit breaker designed for you to use in compatible HFB-series electrical distribution systems. Featuring a non-interchangeable trip unit, this breaker provides dependable protection against overloads and short circuits while maintaining the factory-configured trip characteristics. Built to last, it delivers dependable circuit protection when installed and maintained in accordance with applicable electrical codes and manufacturer recommendations.
Key Features and Benefits
- 20 Amp current rating for branch circuit protection
- Three-pole configuration for compatible three-phase electrical systems
- Thermal-magnetic trip mechanism provides protection from overloads and short circuits
- Non-interchangeable trip unit maintains factory-set trip characteristics
- Rated for operation in 40°C ambient temperatures
- Includes load-side lugs for installation in compatible equipment
Technical Specifications
-
Part Number: HFB3020
-
Type: HFB
-
Product Type: Thermal-Magnetic Molded Case Circuit Breaker
-
Amperage: 20 Amps
-
Poles: 3
-
Voltage / A.I.C. Rating:
- 14kA @ 600VAC
- 25kA @ 480VAC
- 65kA @ 240VAC
-
Trip Unit: Non-Interchangeable
-
Ambient Temperature Rating: 40°C
-
Included Connection: Load-Side Lugs
-
Dimensions:
- Width: 4.13"
- Height: 6.00"
- Depth: 3.38"
-
Approximate Shipping Weight: 6.00 lbs.
Material Compliance and Certifications
The HFB3020 is intended for installation in compatible HFB-series electrical distribution equipment. Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation instructions.
Where It Works Best
- Commercial facilities
- Industrial plants
- Manufacturing operations
- Three-phase electrical distribution systems
- Panelboards
- Switchboards
- Motor and equipment branch circuits
- Maintenance of compatible HFB-series electrical distribution equipment
