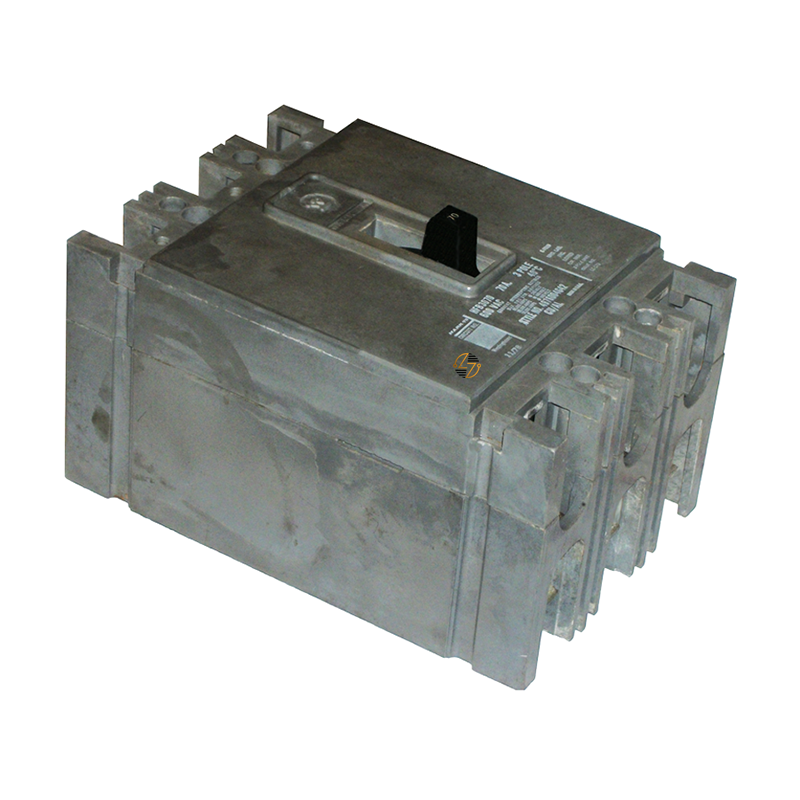

HFB3015 - 15Amp Circuit Breaker

HFB3015 - 15Amp Circuit Breaker

The HFB3015 is a 15 Amp, 3-pole thermal-magnetic molded case circuit breaker designed for use in compatible HFB-series electrical distribution systems. Featuring a non-interchangeable trip unit and a 40°C ambient temperature rating, this breaker helps protect three-phase electrical circuits by interrupting current during overload and short-circuit conditions. When you're maintaining or repairing existing electrical systems, selecting a breaker with the correct amperage, interrupting capacity, and physical configuration helps ensure proper fit and function.

Key Features and Benefits

• 15 Amp current rating for branch circuit protection
• Three-pole design for three-phase electrical systems
• Thermal-magnetic trip mechanism responds to both overloads and short circuits
• Non-interchangeable trip unit maintains the factory-configured trip rating
• Rated for operation in 40°C ambient environments
• Includes load-side lugs for installation in compatible equipment
• Designed as a form, fit, and functional replacement for compatible HFB-series circuit breakers


Technical Specifications

• Part Number: HFB3015

• Type: HFB

• Product Type: Thermal-Magnetic Molded Case Circuit Breaker

• Amperage: 15 Amps

• Poles: 3

• Voltage / A.I.C. Rating:
  • 14kA @ 600VAC
  • 25kA @ 480VAC
  • 65kA @ 240VAC
• Trip Unit: Non-Interchangeable

• Ambient Temperature Rating: 40°C

• Included Accessories: Load-Side Lugs

• Dimensions:
  • Width: 4.13"
  • Height: 6.00"
  • Depth: 3.38"
• Approximate Shipping Weight: 6.00 lbs.


Material Compliance and Certifications

The HFB3015 is intended for installation in compatible HFB-series electrical distribution equipment. Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC), all applicable local electrical codes, and the equipment manufacturer's installation instructions.

Where It Works Best

• Commercial facilities
• Industrial plants
• Manufacturing operations
• Three-phase power distribution systems
• Panelboards
• Switchboards
• Motor and equipment branch circuits
• Maintenance of compatible HFB-series electrical distribution equipment
