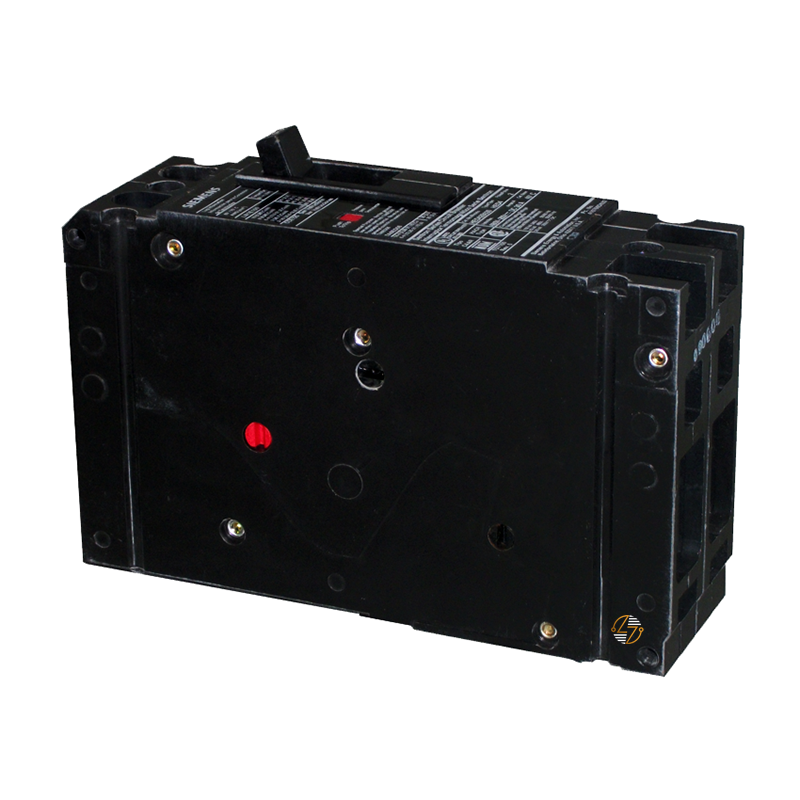

HED42B035L - 35Amp Circuit Breaker

HED42B035L - 35Amp Circuit Breaker

The Siemens HED42B035L is a robust and reliable low voltage Sentron molded case circuit breaker, engineered for high performance and safety in electrical distribution systems. This breaker is equipped with a thermal-magnetic trip unit, ensuring rapid response to overloads and short circuits, which helps to protect your electrical system and enhance operational safety.

Key Features and Benefits:

• High Breaking Capacity: With a breaking capacity of 42kAIC at 480V, the HED42B035L can handle high fault currents, making it suitable for demanding environments.
• Thermal-Magnetic Trip Unit: The integrated thermal-magnetic trip unit provides both long-time and instantaneous protection, ensuring your system is protected from prolonged overloads and sudden surges.
• Line and Load Side Lugs: Comes with line and load side lugs (LN1E100) that support a wire range from 10 to 1/0 AWG (CU/AL), offering flexibility in installation and connection.
• Compact Design: The circuit breaker‰۪s dimensions (2 inches wide, 6.35 inches high, and 3.92 inches deep) allow for space-saving installation in various panel configurations.

Technical Specifications:

• Rated Current: 35A
• Poles: 2-Pole
• Voltage Rating: 480V
• Interrupting Rating: 42kAIC at 480V
• Wire Range: 10 - 1/0 AWG (Copper/Aluminum)
• Dimensions: 2 x 6.35 x 3.92 inches
• Weight: 2.712 lbs
• Frame Type: ED Frame

Material Compliance and Certifications:

• Compliance: The Siemens HED42B035L circuit breaker complies with the stringent UL 489 and IEC 60947-2 standards, ensuring it meets high safety and performance criteria. While specific RoHS compliance information is not available, Siemens ensures that their products adhere to rigorous environmental standards. Additionally, the product is designed to meet the WEEE (2012/19/EU) take-back obligations, demonstrating Siemens' commitment to sustainable practices.

Suitability:

• The Siemens HED42B035L is ideally suited for a wide range of applications, including commercial buildings, industrial facilities, and electrical distribution systems requiring high reliability and safety. Its robust construction and high interrupting capacity make it particularly effective in environments where high fault currents are a concern. Whether for new installations or upgrading existing systems, the HED42B035L provides dependable protection and peace of mind.
