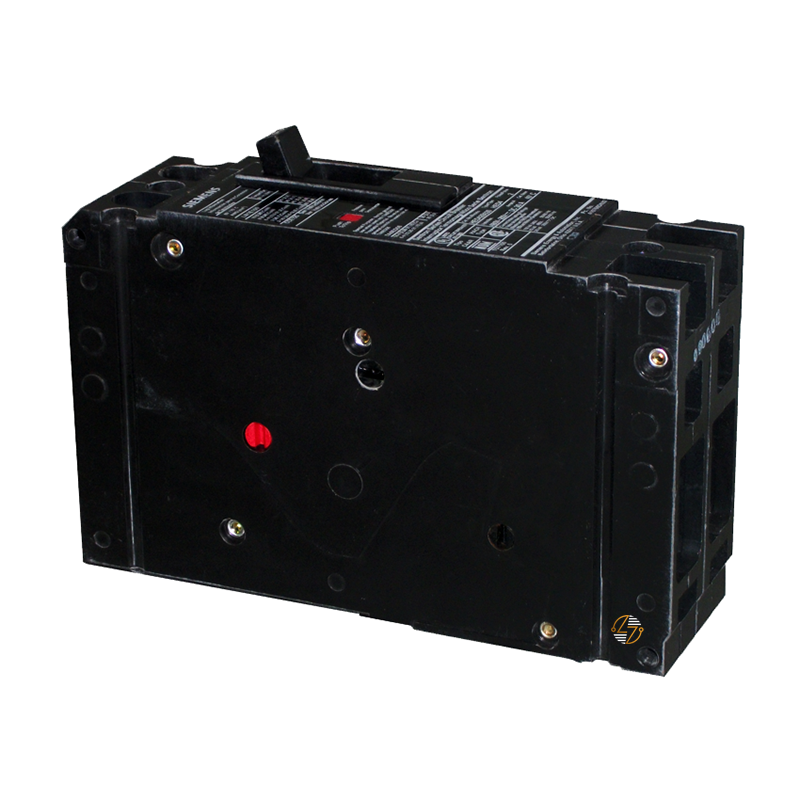

HED42B030L - 30Amp Circuit Breaker

HED42B030L - 30Amp Circuit Breaker

Introducing the Siemens HED42B030L Sentron Series Circuit Breaker, a high-performance solution designed to ensure the safety and efficiency of electrical systems in both commercial and industrial applications. Engineered with precision, this molded case circuit breaker features a thermal-magnetic trip unit, delivering reliable protection against overloads and short circuits.

Key Features and Benefits:

• High Breaking Capacity: With a capacity of 42 kAIC at 480V, this circuit breaker is ideal for applications requiring high fault current interruption.
• Thermal-Magnetic Trip Unit: Provides precise protection by automatically interrupting electrical flow in case of overloads or short circuits.
• Versatile Wire Range: Accommodates wire sizes from 10 to 1/0 AWG (both copper and aluminum), ensuring flexible installation options.
• Compact Design: Dimensions of 2 inches (W) x 6.35 inches (H) x 3.92 inches (D) make it suitable for space-constrained environments.
• Line and Load Side Lugs: Equipped with LN1E100 lugs on both line and load sides, facilitating secure and easy connections.

Technical Specifications:

• Amperage: 30A
• Poles: 2
• Voltage Rating: 480V
• Interrupting Rating: 42 kAIC
• Frame Type: ED
• Operating Temperature: Standard 40å¡C
• Weight: 2.712 lbs
• Dimensions: 2‰۝ (W) x 6.35‰۝ (H) x 3.92‰۝ (D)
• Wire Range: 10 - 1/0 AWG (CU/AL)

Material Compliance and Certifications:

• UL 489 Compliance: Ensures the breaker meets rigorous safety and performance requirements.
• IEC 60947-2 Compliance: Certifies the product for use in international markets, guaranteeing reliability under diverse operating conditions.

Suitability:

• The HED42B030L is perfect for use in various settings, including commercial buildings, industrial plants, and other facilities requiring robust electrical protection. Its high interrupting capacity makes it particularly suitable for installations where fault current levels are substantial. This circuit breaker is engineered to provide long-lasting performance and safety, ensuring the integrity of electrical systems and minimizing downtime.

Upgrade your electrical protection with the Siemens HED42B030L Sentron Series Circuit Breaker ‰ÛÒ a trusted choice for professionals who demand excellence and reliability.
