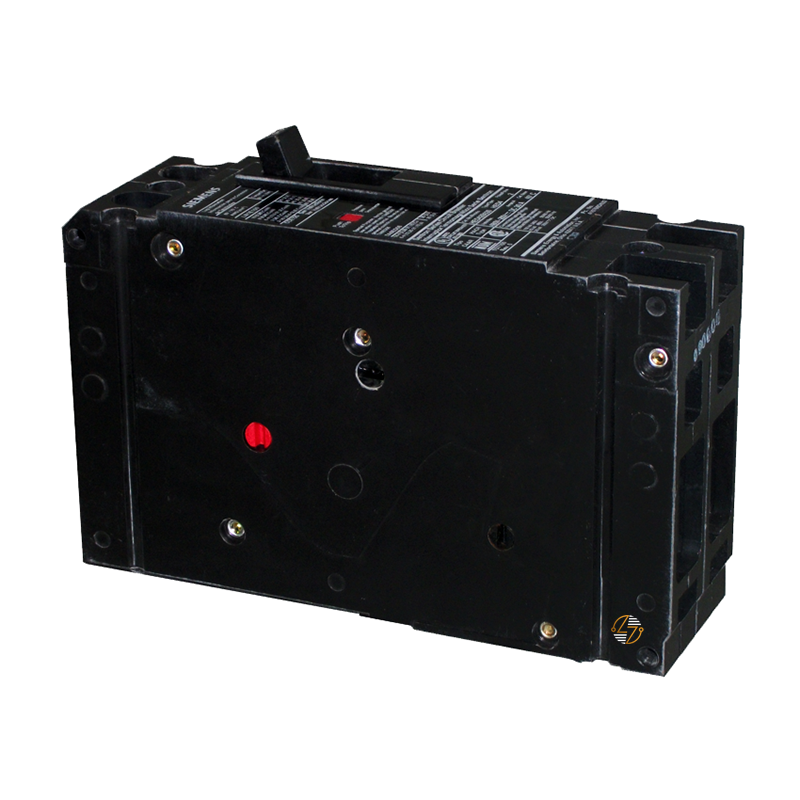

HED42B015 - 15Amp Circuit Breaker

HED42B015 - 15Amp Circuit Breaker

The Siemens HED42B015 circuit breaker is a high-performance, reliable solution designed for demanding electrical applications. Featuring a robust thermal-magnetic trip unit, this breaker is built to meet the rigorous UL 489 and IEC 60947-2 standards, ensuring superior protection and operational efficiency. With a standard 40å¡C breaker ED frame, this 2-pole circuit breaker offers a high interrupting capacity of 42KAIC at 480V, making it suitable for various industrial and commercial settings.

Key Features and Benefits:

• Thermal-Magnetic Trip Unit: Ensures reliable overload and short circuit protection.
• High Interrupting Capacity: Rated at 42KAIC at 480V, providing robust protection against electrical faults.
• Compact Dimensions: Measuring 2 x 6.35 x 3.92 inches, it offers a space-efficient design suitable for tight installations.
• Load Lugs Included: Facilitates easy and secure connections with a wire range of 14-10 AWG (CU) and 12-10 AWG (AL).
• Compliance with UL 489 and IEC 60947-2 Standards: Guarantees adherence to international safety and performance standards.

Technical Specifications:

• Ampere Rating: 15A
• Poles: 2
• Voltage Rating: 480V
• Interrupting Capacity: 42KAIC
• Frame Type: ED
• Wire Range: 14-10 AWG (Copper), 12-10 AWG (Aluminum)
• Dimensions (W x H x D): 2 x 6.35 x 3.92 inches
• Weight: 2.5 lbs

Material Compliance and Certifications:

• RoHS Compliance: Since April 2, 2009
• WEEE Compliance: Obligated under the EU directive 2012/19/EU for electronic waste management
• Country of Origin: Mexico

Suitability:

• The Siemens HED42B015 circuit breaker is ideal for industrial facilities, commercial buildings, and any other environment where reliable circuit protection is critical. Its high interrupting capacity and compliance with stringent safety standards make it suitable for installations requiring rigorous electrical protection and efficiency.
