HEB3B100B - 100Amp Circuit Breaker

HEB3B100B - 100Amp Circuit Breaker

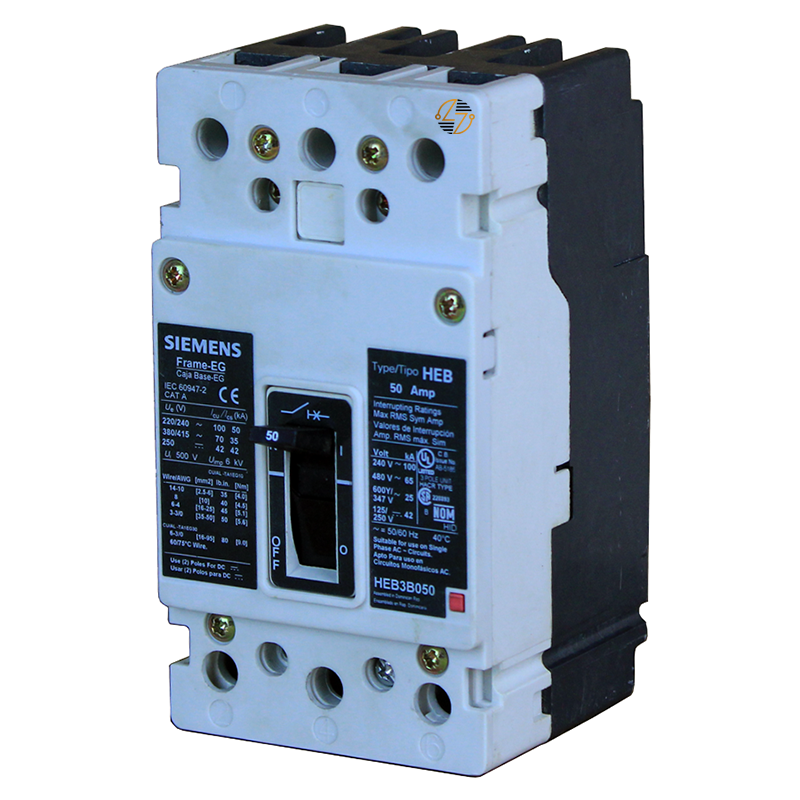

The Siemens HEB3B100B is a 100 Amp, 3-pole molded case circuit breaker for compatible HEB (EG Frame) low-voltage panelboard applications. Finding the right replacement for your breaker is about more than matching the amp rating. The frame style, number of poles, voltage rating, and lug configuration all need to match the existing equipment. The HEB3B100B features a thermal-magnetic trip unit and load-side lugs (TA1EG10), making it a suitable option for applications that require this specific HEB frame configuration.

Key Features and Benefits

• Siemens HEB (EG Frame) molded case circuit breaker
• 100 Amp current rating
• 3-pole configuration for three-phase systems
• Thermal-magnetic trip unit
• 480 VAC rating
• Load-side lugs included (TA1EG10)
• Accepts 8 AWG to 1/0 AWG copper or aluminum conductors
• Matches the form, fit, and function of compatible HEB frame installations
• UL Listed
• Built to last for use in existing electrical equipment

Technical Specifications

• Manufacturer: Siemens

• Catalog Number: HEB3B100B

• Product Type: Molded Case Circuit Breaker

• Frame: HEB (EG Frame)

• Poles: 3

• Current Rating: 100 Amps

• Voltage Rating: 480 VAC

• Trip Unit: Thermal-Magnetic

• Interrupting Rating:65kAIC @ 480 VAC
  25kAIC @ 600Y/347 VAC
• Terminal Configuration: Load-side lugs (TA1EG10)

• Wire Range: 8 AWG to 1/0 AWG Copper/Aluminum

• Dimensions: 3" W × 5.5" H × 3" D

• Weight: 2.513 lb

• Country of Origin: Dominican Republic


Material Compliance and Certifications

• UL Listed
• Compatible with copper and aluminum conductors
• ECCN: EAR99
• Commodity Code: 8536200040
• WEEE Category 5


Where It Works Best

The Siemens HEB3B100B is commonly used in commercial buildings, industrial facilities, and institutional electrical distribution systems that use compatible HEB (EG Frame) panelboards. It is a good fit for replacement projects where the existing breaker needs to match the original installation.
