HEB3B050B - 50Amp Circuit Breaker

HEB3B050B - 50Amp Circuit Breaker

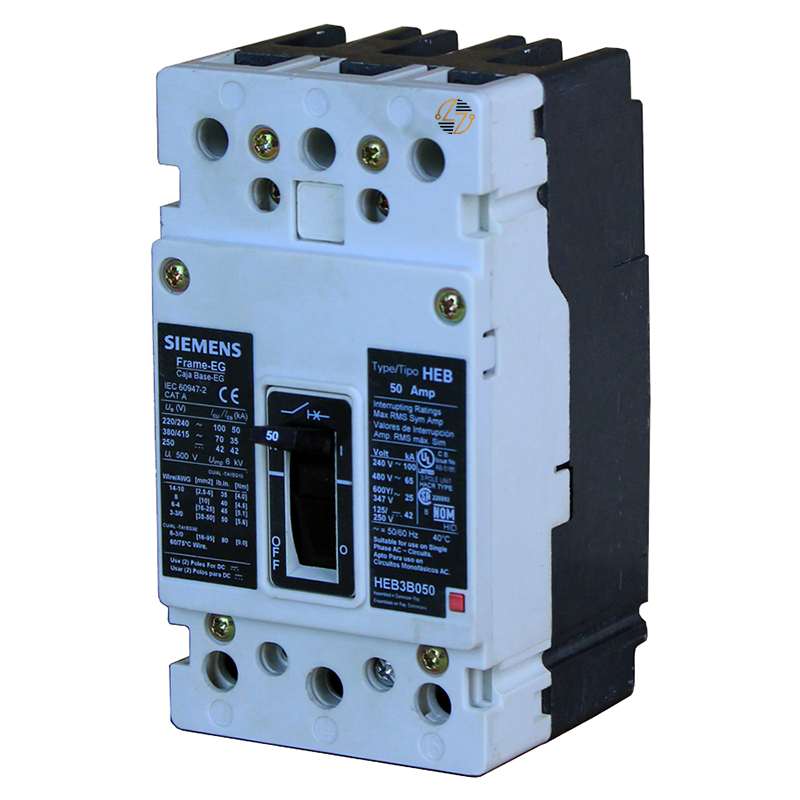

The Siemens HEB3B050B is a 50 Amp, 3-pole molded case circuit breaker for compatible HEB (EG) frame low-voltage panelboard applications. When you're matching a replacement breaker, the small details make the difference. The frame type, number of poles, amperage, voltage rating, and terminal configuration all need to correspond with the existing equipment. This model includes a thermal-magnetic trip unit and load-side lugs (TA1EG10) for installations requiring this specific HEB frame arrangement.

Key Features and Benefits

• Siemens HEB (EG Frame) molded case circuit breaker
• 50 Amp current rating
• 3-pole configuration for three-phase systems
• Thermal-magnetic trip unit
• 480 VAC application rating
• Load-side lugs included (TA1EG10)
• Accepts 8 AWG to 1/0 AWG copper or aluminum conductors
• Matches the form, fit, and function of compatible HEB frame installations
• UL Listed
• Built to last for use in existing electrical equipment

Technical Specifications

• Manufacturer: Siemens

• Catalog Number: HEB3B050B

• Product Type: Molded Case Circuit Breaker

• Frame: HEB (EG Frame)

• Poles: 3

• Current Rating: 50 Amps

• Voltage Rating: 480 VAC

• Trip Unit: Thermal-Magnetic

• Interrupting Rating:
  65kAIC @ 480 VAC
  25kAIC @ 600Y/347 VAC
• Terminal Configuration: Load-side lugs (TA1EG10)

• Wire Range: 8 AWG to 1/0 AWG Copper/Aluminum

• Dimensions: 3" W × 5.5" H × 3" D

• Weight: 2.601 lb

• Country of Origin: Dominican Republic


Material Compliance and Certifications

• UL Listed
• Compatible with copper and aluminum conductors
• ECCN: EAR99
• Commodity Code: 8536200040
• WEEE Category 5
• Not classified as dangerous goods


Where It Works Best

The Siemens HEB3B050B is commonly used in commercial buildings, industrial facilities, and institutional electrical distribution systems that use compatible HEB (EG) frame panelboards.
