HE3B090 - 90Amp Circuit Breaker

HE3B090 - 90Amp Circuit Breaker

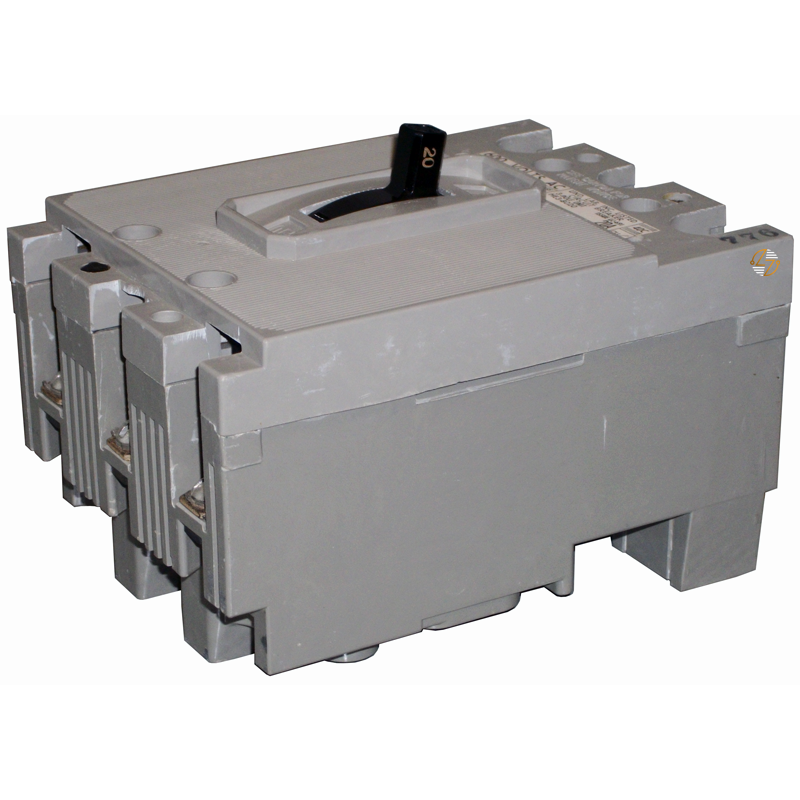

The HE3B090 Molded Case Circuit Breaker is a robust, high-performance solution designed for industrial and commercial applications requiring reliable circuit protection. Engineered for durability and efficiency, this 3-pole circuit breaker is part of the HE3 frame series, providing superior protection against overloads and short circuits while ensuring operational safety.

Key Features and Benefits

• High Interrupting Capacity: Safeguard your electrical systems with exceptional interrupting ratings: 18kA at 600VAC, 25kA at 480VAC, and 65kA at 240VAC, providing dependable protection across varying voltage levels.
• Precision Engineering: Molded case design ensures robust protection and prolonged durability, even in demanding environments.
• Efficient Thermal Performance: Designed for a 40å¡C operating environment, making it ideal for heavy-duty applications.
• Flexible Application: Perfect for industrial automation, commercial buildings, and power distribution systems.

Technical Specifications

• Frame Type: HE3

• Poles: 3

• Interrupting Ratings:
  • 65kA at 240VAC
  • 25kA at 480VAC
  • 18kA at 600VAC

• Amperes: 90A

• Dimensions: 4.50" W x 6.00" L x 3.63" D

• Weight: 7 lbs

Material Compliance and Certifications

• Manufactured in adherence to stringent quality standards, the HE3B090 meets rigorous industry benchmarks for safety and reliability. It is designed to comply with key regulatory certifications, ensuring reliable performance in critical environments.


Suitability

• The HE3B090 is tailored for applications that demand compact, high-capacity circuit protection. Its robust construction and exceptional interrupting capacity make it ideal for electrical systems in manufacturing plants, data centers, and commercial facilities. By combining superior technical performance with a compact design, the HE3B090 Molded Case Circuit Breaker provides reliable protection for critical electrical infrastructure, ensuring long-term system integrity and safety.
