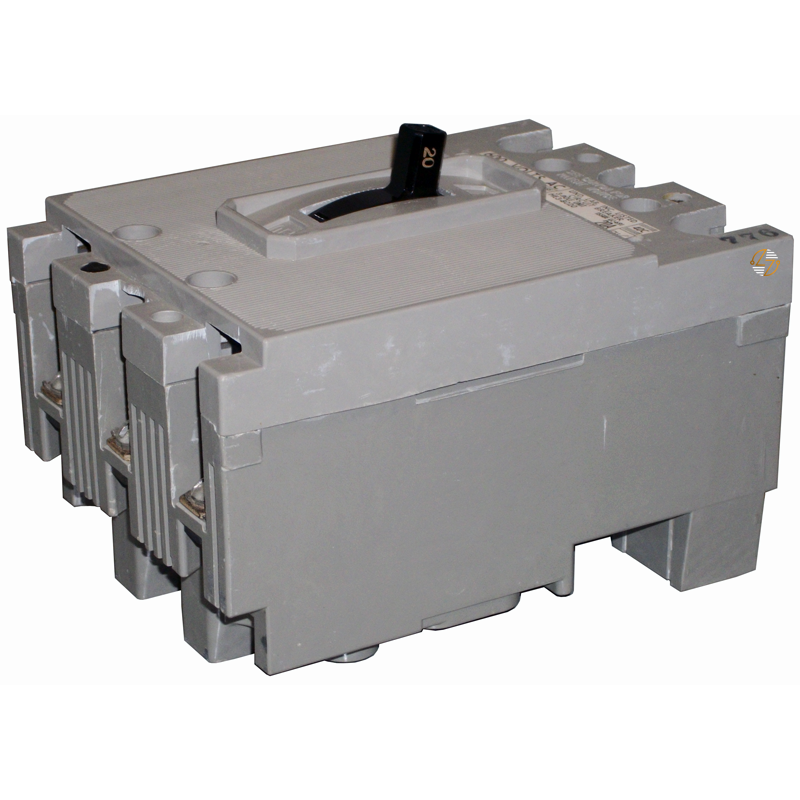

HE3B050 - 50Amp Circuit Breaker

HE3B050 - 50Amp Circuit Breaker

The HE3B050 Molded Case Circuit Breaker is a compact, high-performance electrical protection device, purpose-built for industrial and commercial environments. This 3-pole circuit breaker belongs to the reliable HE3 frame series, providing exceptional protection against overloads and short circuits.

Key Features and Benefits

• Exceptional Interrupting Ratings: With an impressive interrupting capacity of 65kA at 240VAC, 25kA at 480VAC, and 18kA at 600VAC, this circuit breaker delivers dependable protection for a wide range of voltage applications.
• Compact and Durable Design: Molded case construction ensures a rugged and reliable product capable of withstanding heavy-duty use and thermal stresses in a 40å¡C operating environment.
• Versatile Performance: Supports a wide range of applications, including industrial automation systems, commercial facilities, and critical power distribution networks.
• Ease of Installation: Lightweight and compact, the HE3B050 is engineered for straightforward integration into existing electrical systems.

Technical Specifications

• Frame Type: HE3

• Poles: 3

• Interrupting Ratings: 65kA at 240VAC;åÊ25kA at 480VAC;åÊ18kA at 600VAC

• Amperes: 50A

• Dimensions: 4.50" W x 6.00" L x 3.63" D

• Weight: 7 lbs

Material Compliance and Certifications

• The HE3B050 is designed and manufactured to meet stringent safety and quality standards, ensuring compliance with industry certifications. Its robust construction and high interrupting capabilities make it suitable for critical applications where safety and reliability are paramount.


Suitability

• The HE3B050 is ideal for power distribution in industrial and commercial settings, offering superior protection for systems operating at up to 600VAC. Its high interrupting capacity and compact design make it particularly well-suited for installations where space is limited, and operational reliability is critical.
