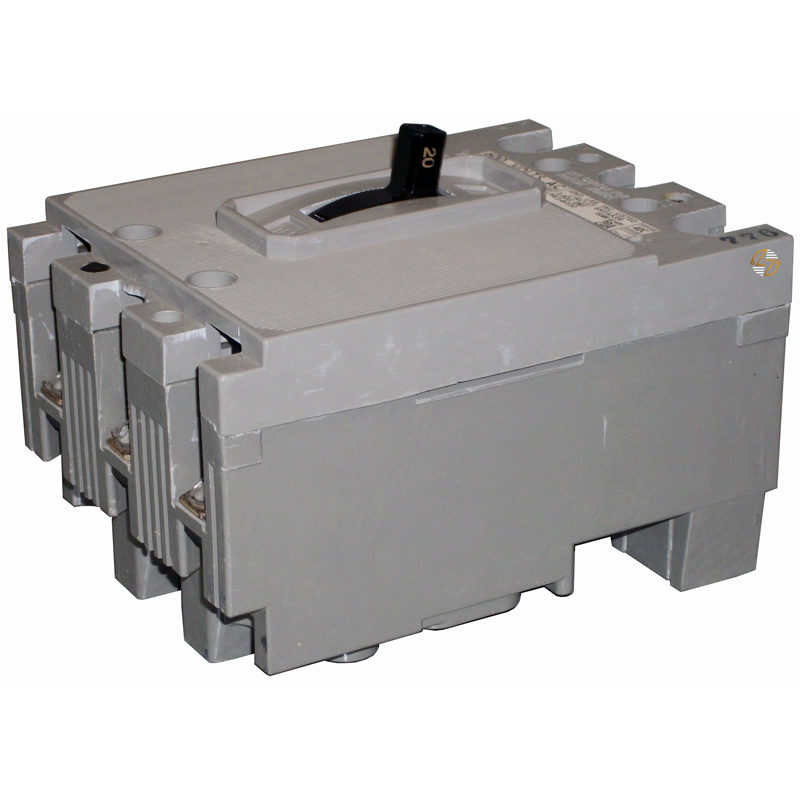

HE3B020 - 20Amp Circuit Breaker

HE3B020 - 20Amp Circuit Breaker

The HE3B020 Molded Case Circuit Breaker is a premium solution for reliable and efficient circuit protection in demanding environments. Engineered to deliver superior performance, this three-pole circuit breaker features an A.I.C. rating of up to 65k at 240VAC, ensuring robust fault current handling capability for high-power systems.

Key Features and Benefits

• Compact and Lightweight: Small footprint reduces panel space requirements and simplifies installation.
• Thermal Suitability: Optimized for operation at 40å¼C, maintaining performance under varied environmental conditions.

Technical Specifications

• Frame Type: HE3

• Poles: 3

• Amperage: 20A

• A.I.C. Ratings: 18k @ 600VAC, 25k @ 480VAC, 65k @ 240VAC

• Dimensions: 4.50" W x 6.00" L x 3.63" D

• Weight: 7 lbs.

• Operating Temperature: 40å¼C

Material Compliance and Certifications

• Durable Molded Case Construction: Designed for longevity and reliable operation under industrial and commercial conditions.
• Standards Compliance: Manufactured to meet or exceed industry safety and performance standards for molded case circuit breakers.


Suitability

• The HE3B020 circuit breaker is ideal for applications in industrial plants, commercial facilities, and power distribution networks where high fault current ratings and compact designs are crucial. Its versatility in voltage ratings makes it a preferred choice for integrators and engineers managing diverse electrical infrastructures.

Leverage the advanced capabilities of the HE3B020 to enhance safety and efficiency in your power systems. This breaker provides the reliability and protection demanded by modern electrical applications.
